Polyester Thermal Bonding Soft Filling Oven

Product Description

Soft filling thermal bonding glue-free cotton production line
1.Production line description
The production line consists of: electronic weighing bale opener, pre-opener, vibrating cotton feeding box, carding machine, cross-lapper, oven, trimming and winding machine. The electronic weighing and opening machine realizes the ratio of different raw materials, and the raw fiber is loosened by the pre-opener to make the raw fiber material fluffy. Then vibrate the mixing box to make the raw materials more uniform. Secondly, the fiber is combed by the carding machine and enters the cross-lapper in a net shape. The layers of the cross-lapper are flattened, and the conveyor belt drives the fiber to enter the oven evenly. The oven is heated to make the hot-air cotton fluffy. Finally, the hot air cotton is finalized through the trimming machine.
2.Production line parameters

NO	ITEM	DESCRIPTION
1	Band	RD
2	Product width	Can be customized (2m-8m)
3	Gram weight	Can be customized(100g-800g)
4	Voltage	380v,50hz(can be changed)
5	Machine material	Made of high-quality steel, durable and not easy to damage

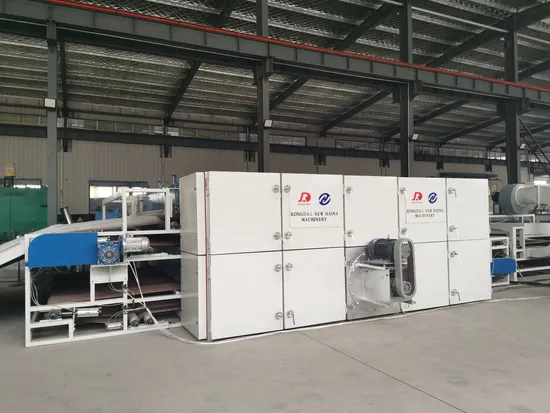

3.Machine plane display
3.Final product display
4.Company Profile
Shandong Gaomi Rongda Machinery Co., Ltd. relies on cooperative research and development to promote high-efficiency and high-quality products. It has been engaged in mechanical processing and manufacturing in the field of textile waste recycling and processing. The purpose is to move forward steadily and develop continuously.After more than 20 years of development, the company has grown gradually, and our products are exported to all over the world. Europe, Southeast Asia, the Middle East, Africa, South America, etc. have left our footprints. Established a long-term cooperative relationship with partners.
5.International exhibitions
6.Contact information

---
