A4 Paper Cutting Machine, Automatic A4 Paper Roll Cutter, Copy Paper Cutter, Paper Sheeting Machineey China Price

Product Description

A4 Paper Cutting Machine, Automatic A4 Paper Roll Cutter, Copy Paper Cutter, Paper Sheeting Machineey China Price
Machine Introduction
The automatic sheeting machine is suitable for all kinds of paper, self-adhesive, gold and silver cardboard, color printing compound, PVC, and other materials. It is RS-K economy type. It is mainly customized for hamburger paper and sandwich wrapping paper less than 60g. The servo motor is used for feeding, which increases the cutting precision more than step motor control. PLC touch screen control. The paper is directly stacked after cutting. One worker collects the sheets by manual. Optional: hydraulic shaftless automatic loading stand. The utility model has the advantages of simple operation and convenient maintenance. You can choose 1 / 2 / 3 / 4 roll feeding and 1-4 format slitting.
Main Technical Parameters:

Pneumatic Air Shaft Unwind Reel	4
Unwinding width	1050mm
Slitting Format	5sheets
The thickness of Cutting Paper	60-80GSM
Output	7reams/min
Max. Scroll Diameter	1400mm
Paper-Cutting Width	210mm
Cutting length	297mm
Paper Core Size	3"
Cutting Precision	±0.15mm
Max. cutting speed	150cuts/min
Paper piling height	80g, 1ream(55mm) 70g, 1ream (46mm)
Requirement of Paper Reel	Qualified paper roll with no breakage
The Request for Air Compressor	0.6-0.8Mpa
Servo Motor Power	4.4kw
Frequency Inverter Power	2.2kw
Feeding Motor	4sets 1.5kw*4
Air compressor power	1.5kw
Magnetic Brake	20kg/m2 *4pcs
Power Consumption	380V/220V 50Hz/60Hz
Overall Dimension	17000*2700*2000mm
G.W.	9000KGS

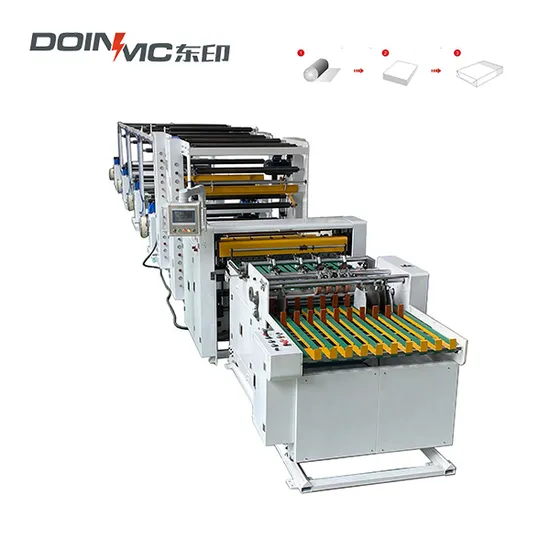

2 roll feeding picture as above.
If workshop space is enough, we suggest two separate pneumatic loading stands, which is easier for jumbo paper roll loading.
But output will reduce to 3reams/min.
Company Introduction
Wenzhou Dongyin Machinery Manufacturing Co., Ltd. Established in 2019, we are growing out from Ruian City Dongfang Machinery Manufacture Co., Ltd.(since 1993) We take the good technical tradition from it and develop stronger soft packing material roll sheeting machine series. Absorbing more new advanced technology, we have a brand upgrade of our old products both in pre-press and post-press industry.
We will keep our core value to offer great service to each customer's home and aboard. Offer qualify machine, make client getting rich. Good service, good faith. We DONGYIN people always stand by.
Shipping
For customized model, please contact our sales by inquiry here directly.
We will reply by email or phone call as soon as possible.

---
