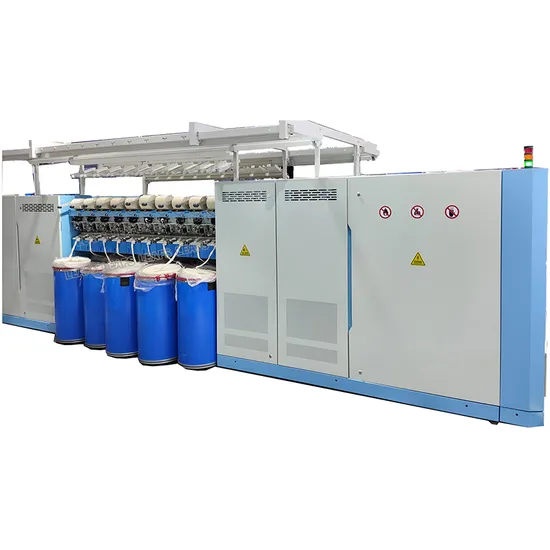

Fully Automatic Computer Open End Rotor Spinning Machine for Cotton Yarn Spinning

Product Description

Product Description
The machine is designed for raw material impurity rate of cotton, polyester, cotton thread, recycle and its blended spun.It is especially ordered equipment for wool spinning, flax yarn, gloves yarn and so on particular yarn market.
The highest rotor design speed of 11000RPM. Top spun Ne40 cotton yarn.Equipped with imported T type spinning cup,yarn evenness is more uniform.The spinning box is equipped with rotor bearing up to 12rpm to meet the requirements of high quality yarn.
lnnovative auto doffing device can be as option, which increase production efficiency greatly. More electronic technology applications make machine smarter and more efficient.
Product Parameters

Rotor Dia (mm)	φ66	φ54	φ43	φ36	φ34
Rotor speed *10000 (r/min)	3.1-4.5	4.0-6.0	5.0-6.0	6.0-8.0	7.0-9.0
Fiber length(mm)	15-60	15-40
Spindle quantity/section	24,36,48........192/16 216/18 240/20 264/22 284/22
Spindle Gauge (mm)	210
Yarn density	Ne		58.3-2.9
	Nm		100-5
	Tex		10-200
Yarn count	Cotton Ne		0.2-0.083
	Cotton Nm		0.33-0.14
	Cotton Ktex		3-7
	Synthetic fiber Ne		0.24-0.12
	Synthetic fiber Nm		0.40-0.20
	Synthetic fiber Ktex		2.5-5
Combing roller speed (r/min)	5000 6000 7000 8000 9000
Out -put speed(m/min)	≤170
Draft range	9-274
Max take up bobbin size(mm)	300*150
Max take up bobbin weight (kgs)	4
Cylindrical dimension(mm)	50/56*170
Sliver can dimension(mm)	φ250 φ300 φ350 φ400 *900
Spindle per section	12
Motor power (Kw)	64(63.27)

Features
1.Semi-automatic joint
Use stepper motor to feed cotton alone, combined with professional computer software parameter design, to realize joint section control. To improve the quality and success rate of joint.
2.Single spindle guiding technology
The semi-automatic connection device is equipped with the single spindle motor yarn leading unit, and the action response is more sensitive. The advanced and reliable digital joint technology ensures the joint efficiency and quality.
With the cooperation of electronic transverse movement, the yarn speed can reach 200 meters/min, so as to obtain more production capacity.
3.Traverse structure and spinning forming
Adopt the internationally leading electronic traverse mechanism, within the scope of the process through a computer screen can be adjusted winding Angle, lateral dynamic differential micro cycle and cycle variation, reduce or eliminate the chrysanthemum cone yarn core. Ensure sequence of normal unwinding after cone yarn.
4.Spinning box
The two spinning machines are equipped with high-precision process components and rotor bearings u p to 12 rpm to meet customers' pursuit of high-end yarns and requirements for high speed, high quality, and high efficiency.
Customer Show

Related machine
Waste cotton yarn open end spinning line (Max 40Ne,mostly within 16Ne)
Waste recycling machine→Blow-room→Carding machine with chute feeder→Draw frame machine→Open end spinning machine

Interntional advanced inspection instrument.
Leafs Company devotes itself to control and improvement of products'quality, spent more investment importing international advanced testing and inspection instruments for researching and development of new products and daily inspection of ordinary products
Production process
Company Profile
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered.
FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
