Multi-Layer PE PPR Water Supply Pipe Extrusion Production Line

US$15,000.00-60,000.00 1 Set (MOQ)

Basic Info.

Model NO.
50-200mm
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Suitable Material
PE,PP,HDPE,PPR Pellet
Application
Water Supply Pipe
Pipe Range
10-630mm
Screw Diameter
20-150mm
Screw Type
Single Screw
Barrel Material
38CrMoAl
Contactor
Schneider
Air Switch
Schneider
Temperature
Omron
Machine Name
PPR Pipe Production Line / Pipe Extrusion Line
Transport Package
Standard Export Package
Specification
12-630mm
Trademark
BORUN
Origin
China
HS Code
84778000
Production Capacity
100PCS/Year

Product Description

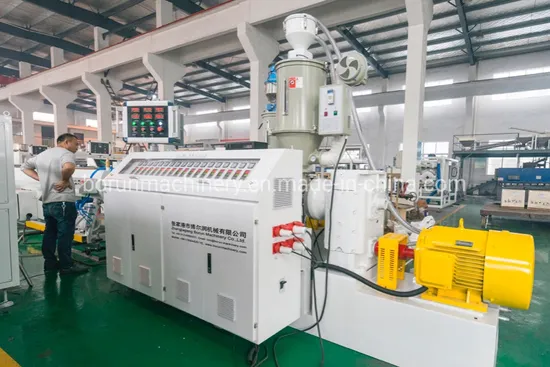

PPR Pipe Production Line / Pipe Extrusion Line
Descriptions:
This extrusion line is mainly used for producing PPR pipe, also suitable for producing PERT, PB, PE-X resin pipes. The machines are designed with advanced west europe technology and use ABB inverter and Siemens motor. The extruder is single screw type with high speed production.
Features:
*PLC control, high automation;
*Adopting specialized screw with good plasticizing effect.
*Vacuum calibration, constant temperature control, eliminating pipe stress;
*Adopting co-extrusion head to add color line;
*High extrusion capacity, low and equal temperature of melt.
*Wide processing range of raw materials.

Technical parameters:
Extruder Model Pipe Diameter Range(mm) Capacity(kg) Total Power(KW)
SJ65/33 20-63 120 80
SJ65/33 20-110 180 140
SJ65/33 50-160 330 180

Spare Parts List (For free)
No. Name Qty. Application
Machinery part:
1 Oil seal 1 pc. Gearbox high-speed shaft
2 Screw unload tools 1 set Unload screw
3 Sprayer 10 pcs. Vacuum tank and spray tank
4 Seal 5m
5 Rubber block 10pcs. Haul-off
6 Air pipe 5m Cutter
Electrical part:
1 Thermocouple(3m) 3pcs. Extruder
2 Small AC contactor 1pc Electric cabinet
3 Small circuit breaker 1pc
4 Potentiometer 1pc
