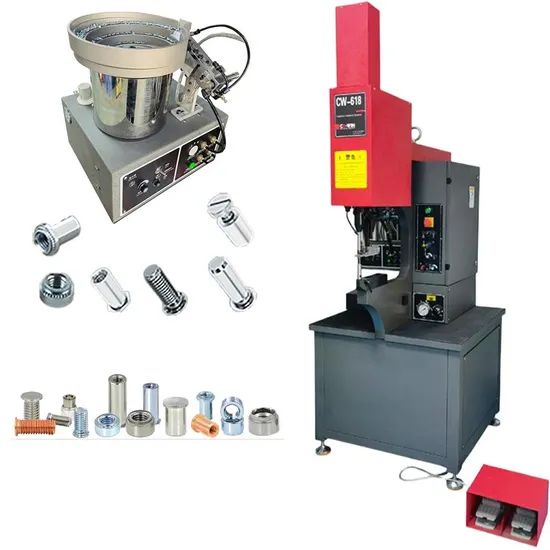

Factory Direct Selling Press Rivet Caps Hydraulic Self Locking Riveting Machine

Product Description

Product Description

SUITABLE FIELD
1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)
2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)
3.Convex hull formation(formation arear diameter below 45MM techonlogy
4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)
5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet conjunction technology)

Specifications	CW-618	CW-824	CW-1024
Force Range Adjustable	(2kN)to(54 kN)	(2kN)to(72 kN)	(2kN)to(92 kN)
Throat Depth	18"(457mm)	24"(610mm)	24"(610mm)
C Type Throat Height	15"(381mm)	17"(432mm)	17"(432mm)
Repeatability	+/-2% of force setting	+/-2% of force setting	+/-2% of force setting
Stroke Length	0 to 8"(0 to 200mm)	0 to 8"(0 to 200mm)	0 to 8"(0 to 200mm)
Fastener Range	M2 to M10	M2 to M10	M2 to M12
Clinching Capability	1mm to 6mm combined thickness	1mm to 6mm combined thickness	1mm to 6mm combined thickness
Protection Press Hand System	Standard	Standard	Standard
Automatic Feed	Option	Option	Option
Laser Positioning Instruction	Option	Option	Option
Motor	5 HP 3 Phase	5 HP 3 Phase	5 HP 3 Phase
Electrical	200v to 575v 3 phase 50 or 60hz.	200v to 575v 3 phase 50 or 60hz.	200v to 575v 3 phase 50 or 60hz.
Oil Tank Reservoir	13gallons (50 liters)	22gallons (83 liters)	22gallons (83 liters)
Single Machine Dimesion	L1320*W1100*H2140(mm)	L1770*W1220*H2260(mm)	L1770*W1220*H2260(mm)
Weight	650kg	1160kg	1160kg

Detailed Images
Positive Limit
The positive limit system provides an easily adjustable method of precisely maintaining the stopping point of the machine cylinder, effectively preventing the indentation of soft materials when inserting the fastener, such as Aluminum, Glass Fiber, Printed Circuit Board, Plastic and various composite materials. The product thickness can be accurate to ±0.05mm.
Anti Pressing Hand Protective System
Intelligent fastener insertion machine is equipped with mandatory our patented safety protection system, automatic detection on the anti pressing hand function is working when starting up.
Replaceable Die Base Mounting Plate
The bottom die base replace frequently during working, which leads to screw striped of the lock thread lose efficacy in long term working. Our machine is specially designed the quench hardening and grinding quick changing bottom plate for the die base.
Main Electrical Cabinet and
Control Panel
Control the power, parameter setting and adjust the pressure etc.
Auto Feeding System (Optional)
Precision aluminum alloy hard anodizing treatment, wear resistance Intelligent ON and OFF of the bowl feeder to avoid long time friction pf fasteners under vibration state, resulting in coating peeling and abrasion. Used for the size of M2-M6 screws, nuts and standoffs automatic feeding. The maximum length nuts and standoffs can reach 30mm. The system has the function of fast removal residue fastener.
Auto Feeding Tooling( Optional)
According to different feeding method and fasteners we have designed different tooling to achieve the machine working automatically.
Auto Feeding Tooling( Optional)
According to different feeding method and fasteners we have designed different tooling to achieve the machine working automatically.
Application
Fasteners Reference
From our standard product offering insertion machines, to our build-to-order products and custom engineered insertion solutions, Co-Win has the ability to provide you with a totally unified solution for virtually any of your insertion challenges. Whether your company is new to hardware insertion, or inserts millions of fasteners each year, Our solution oriented approach will ensure that you get the correct system for your needs.
Packaging and Exhibition
Our Services & Strength
1. Products have a number of patents, the accumulation of rich industry experience, mature and stable technology;
2. Each product is strictly in accordance with the design requirements, process flow, process testing, to ensure reliable quality;
3. Excellent workmanship, beautiful appearance, energy saving and environmental protection, high efficiency;
4. Modular design, can be customized according to customer requirements, convenient after-sales maintenance;
5. Rich product line, complete specifications, can meet customers' diverse needs;
6. A number of certification, in line with international standards.
Certifications



FAQ

1.Professional technical team, nearly 30 years of industry experience;
2.Lean production management mode combines market demand, product research and development, production and manufacturing,pre-sales quality and after-sales service;
3.Advanced equipment, mature technology, with a number of independent intellectual ;
4.Complete quality control, assured quality, from raw material procurement, production process control, to finished product inspection, packaging, full field monitoring traceability, to ensure that every product qualified;
5.Has three specialized processing and manufacturing factories, sufficient inventory, short delivery time;
6.Support customized, design according to customer requirements to meet the diversified demand of customers;
7.Perfect after-sales service system and after-sales quality tracking system;
8.Professional sales system, rich experience in export related operation process.

---
