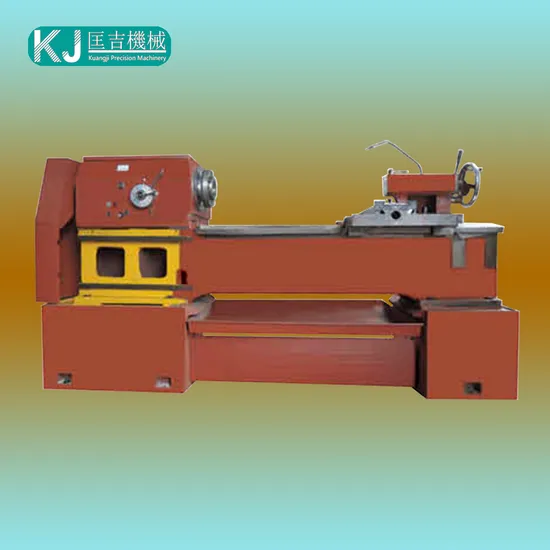

Ordinary Horizontal Centre Lathe Cn6180b-2000 High Precision Universal Lathe for Metal Manual Lathe Machine

Product Description

1, ordinary (saddle) lathe a spindle through the hole diameter of 48mm:
C6132(40)A: The rail span is 290mm; Processing diameter of 350~ 400; Center distance 500-1000mm;
C6132(40)D: The rail span is 320mm; Processing diameter of 350~ 400; Center distance 500-1500mm.
2, large aperture ordinary (saddle) lathe:
(1)CN6140B: the guide rail span is 390mm; The spindle bore diameter of 82, the processing diameter of 420, the center distance of 1000-3000mm;
(2)CN6150B: the guide rail span is 390mm; The spindle bore diameter of 82, the processing diameter of 500, the center distance of 1000-3000mm;
(3)CN6180B: the guide rail span is 510mm; The diameter of the main shaft is 82, the processing diameter is 800, the center distance is 2000-3500mm;
(4)CW6195F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 950, the center distance is 2000-5000mm;
(5)CWQ61110F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 1100, the center distance is 2000-5000mm;
(6)CWQ61125F: the rail span is 550mm; The diameter of the main shaft is 105, the processing diameter is 1250, and the center distance is 2000-5000mm.
3. CJK, CNC series (flat bed, inclined bed) CNC lathes and CNC light machines:
Processing diameter of 350~ 1250, processing length 750~3000mm.

Technical parameter	Machine tool type		CN6280B
Maximum turning diameter on the bed			800 mm
Height of center			400 mm
Maximum workpiece length			2000 mm,3500 mm
Width of bed rail			510 mm
Maximum workpiece turning diameter on the tool holder			560 mm
Maximum rotating diameter of workpiece in saddle groove			1000 mm
Platter front saddle effective length			240 mm
Through-hole diameter			Ф 82
Taper hole			Ф 90/1:2
Spindle speed			8~1400 r/min (24 levels for each side)
Maximum transverse travel of the tool holder			410 mm
Small knife holder maximum stroke			175 mm
Distance from spindle center line to tool support surface			About 37 mm
Tool bar section size (H x W)			32 mm x 32 mm
Longitudinal feed			0.028-6.43 mm/r (93)
Lateral feed			0.012~2.73 mm/r (93)
Taper of the inner hole of the center sleeve			MT5
Maximum movement of the center sleeve			150 mm
Maximum lateral movement			±15 mm
Metric system			0.5~224 (48)
British system			72~1/8t/in (48)
module			0.5~112 (42)
Diametral pitch			56~1/4DP (45)
Main motor			11 kW 1500 r/min
Main drive triangle belt model specification			B-2600 mm
Overall dimensions(Length x width x height)	centre distance	1000 mm
		1500 mm
		2000 mm	3560mmx1250mmx1480mm
		3000 mm
		3500 mm	5060mmx1340mmx1430mm
Net machine weight

---
