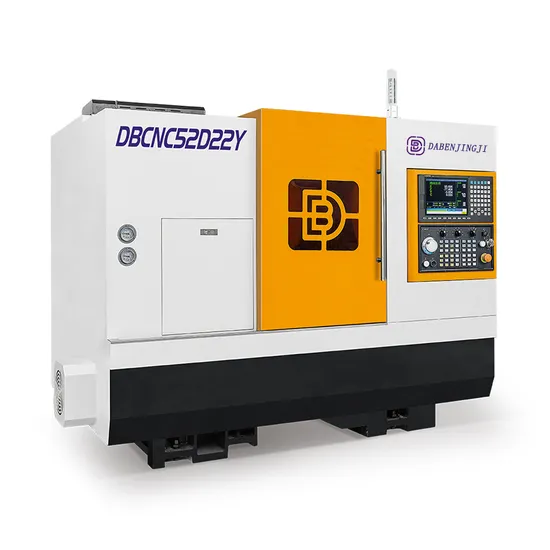

Remarkable dB-6152 Serie Dual-Power Turret Dual-Spindle Turning-Milling Compound Center CNC Lathe - Offering Unparalleled Precision, Efficiency, and Versatility

Product Description

Model characteristics
1.machining center equipped with a backup spindle and a true Y-axis dual-power turret.
2.Equipped with imported high-precision linear guides, ball screws, and precision bearings.
3.The backup spindle can perform complex end-face machining of cut surfaces without requiring secondary processing.
4.Dual spindles process complex workpieces, saving time, reducing labor costs, and ensuring concentricity.
5.The dual-power turret processes high-rigidity parts, utilizing the true Y-axis power head to combine turning and milling functions for intricate part machining.
6.Capable of large-scale precision machining of steel, stainless steel, as well as drilling and tapping on shaft ends, and tailstock processing for long shaft parts.
7.Equipped with four-axis turning, milling, drilling, cutting, tapping, and other coordinated processing functions, capable of drilling and tapping the ends of parts.
8.Side-mounted power tool modules enable drilling, tapping, and milling flat functions, completing precise drilling and milling of various shaft components.
Standard configuration
- New-generation system
- Japanese NSK bearings
- Japanese THK ball screws
- Integral cast iron bed
- German Rexroth linear guides
- Taiwan Jian Chun / Taiwan Pusen spindle
Technical parameters

Model	DBCNC52D22Y
Item	Describe	unit	Parameter
Processing capacity	Number of axles	/	7axis/7axis(X+Z+Z1+C1+C2+Y+TD)
	Spin diameter on the bed	mm	Φ700
	Maximum machining diameter	mm	Φ500
	Maximum processing length	mm	Main spindle 500, secondary spindle 250
Spindle	Spindle nose end	/	Positive :A2-6, secondary: A2-5
	Spindle bore	mm	Positive :Φ65, secondary :Φ56
	Bar diameter	mm	Positive :Φ52 Deputy :Φ46
	Spindle speed	/	Positive :0-4000, secondary: 0-5000
	Oil pressure chuck	/	Positive :8" or 52 type collet, secondary :6" or 46 type collet
Turret	Knife tower model	/	BMT45/BMT55
	Knife number	T	12T/15T
	Outer diameter knife handle	mm	25mm
	Inner diameter tool handle	mm	Φ32mm or Φ40mm
	TD axis (milling axis) speed	/	0-4000rpm
Slider	X1 axis stroke (diameter)	mm	500mm
	Y1 axis travel	mm	120mm(±60mm)
	Z1/Z2 axis stroke	mm	300mm/600mm
	X1 axis rapid displacement	/	20
	Y1 axis rapid displacement	/	20
	Z1/Z2 axis rapid displacement	/	20
Mechanical precision	Main and secondary axis indexing and repeated positioning accuracy	/	±0.005°
	Main and auxiliary axis indexing positioning accuracy	/	±0.002°
	X/Y/Z/Z1 repeatability	mm	0.002mm
	X/Y/Z/Z1 axis positioning accuracy	mm	0.003mm
Motor	Spindle Motor	KW	11KW
	Auxiliary spindle motor	KW	7.5KW
	X1 axis X1	KW	3.1KW
	Y1 axis Y1	KW	3.1KW
	Z1/Z2 axis	KW	3.1KW
	TD axis (milling axis)	KW	3.9KW
	Oil pump motor	KW	3.1KW
	Cooling pump motor	KW	1.5KW
Capacity	Oil pressure tank capacity	L	65L
	Cooling water tank capacity	L	150L
Size	External dimensions (length * width * height)	mm	3200*2300*2000
	Overall weight	KG	5500KG

Detailed Photos
Detailed photos of the remarkable DB-6152 Serie Dual-Power Turret Dual-Spindle Turning-Milling Compound Center CNC Lathe from Dongguan Daben Intelligent Equipment Co., Ltd. Unparalleled precision, efficiency, and versatility for metal processing.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.

---
