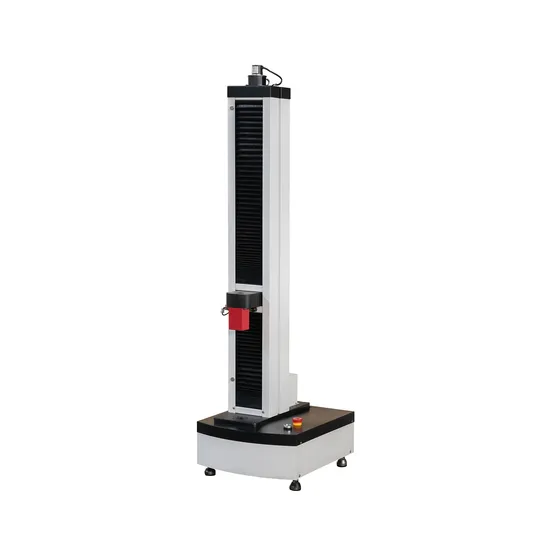

1kN 50kN Computer Controlled Tensile Strength Electronic Single-Column Tensile Testing Machine

Product Description

WDDBW series 50N-5000N Single Arm Computer Control Electronic Universal Testing Machine Product Description
Application
The single column series testing machine is designed and produced for the tensile, compression, peel,and bending tests of the rubbers, plastics, thin films or other materials.
And it is also used for the performance tests of the thin metal, wire, fiber, elastomer, foam materials.
Features
The machine adopts a single-column structure, the beam can be steplessly adjusted for lifting and lowering, and the test space can be changed after the column, screw, and outer cover are replaced. The transmission system is composed of a low-noise circular-arc synchronous gear belt deceleration system and a lead screw pair, with stable operation, high efficiency, low noise and no pollution.
(Different fixture available as customers' demand)
Standard
The machine is calibrated as ASTM E4, ISO 75001 international standard. By adding different grips it can do the test of ISO 527, ISO 8295, ISO 37, ISO 178, ISO 6892, ASTM D412, ASTM C1161, ASTM D882, ASTM D885ASTM D918, ASTM D1876, ASTM D4632 and all the force and extension JIS, DIN, BSEN testing standards.
Product Parameters

Model	WDDBW Series
Maximum test force	50N~5000N
Test machine level	Level 1
Test force measurement range	2%~100%FS
Relative error of test force indication	Within ±1%
Relative error of beam displacement indication	Within ±1
Displacement resolution	0.001mm
Beam speed adjustment range	0.05~500 mm/min
Relative error of beam speed	Within ±1% of the set value
Effective stretching space	800mm standard model (can be customized)
Dimensions	425×400×1580mm
power supply	220V±10%; 850W
Machine weight	110Kg
Main configuration: 1. Industrial computer 2. A4 printer 3. A set of stretching fixture 4. A set of compression fixture Non-standard fixtures can be customized according to customer sample requirements

Company Profile
FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C

---
