Efficient Stable Hygienic Under Pad Machine with High Speed (CD150-FC)

Product Description

Stable Effective Under Pad Machine Factory with CE

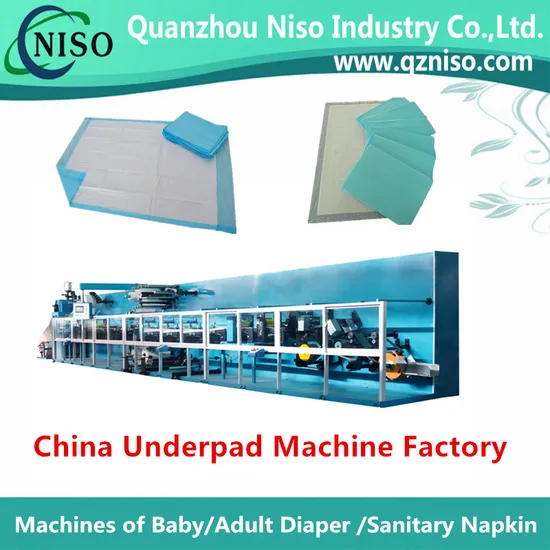

Machine Display
Finished Products
CD150-FC High-speed Underpad making machine made in China
Main Technical Parameter

Designed production speed	150 meters/min
Stable production speed	100 meters/min(or as per customers designed)
Machine power	three-phase five-wire(380V, 50HZ)
Machine capacity	about 250KW(exclude hot melt applicators and air compressor
Machine size	22m*8m*3.5m ( L*W*H)
Machine weight	about 30T (whole production line)
Air pressure	0.6-0.8Mpa

Quick Details
Condition: New frequency underpad production machine
Product Type: Underpad making Machine
Processing Type: Pulp Molding Machine
Place of Origin: Fujian, China (Mainland)
Model Number: CD150-HSV
Voltage: 380v, 50HZ, three-phase five-wire
Power(W): about 350 kw
Dimension(L*W*H): 22m*8m*3.5m ( L*W*H)

Weight: 30Tons
Certification: ISO, certificate of utility model patent
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Machine type: full-servo underpad production machine
Designed speed: 150 meterss/min
Stable production speed: 100 meters /min
Diaper size: S, M, L, XL
Control system: semi-servo control
Packaging system: Equipped with the stacker at the request of client
Efficient rate: ≥ 85%
Reject rate: ≤2%
Air pressure: 0.6-0.8Mpa
Main Function Features
1. Produce different sizes of under pad
2. The quantity of SAP and fluff pulp can be adjusted freely
3 Raw materials automatic unwinding system, automatic splicing units, automatic rejection units, automatic web guard system.
4. Under pad machine is attached with fully automatic packing machine (stacker), make packing simpler and save labor force
5. Under pad machine equipped with production door
6. Touchable Screen: Machine switch on/off, running speed, time, counting pieces, parameter setting, alarm, error display, error enquiry(functions setting appear on screen are different according to different machine type)
Machine Production Workshop
Machine Assembly
Our Services
Excellent After-sales service
1. You can send technicians to our factory to learn operating the machine before delivering
machine for 1-2 month.
2.When the machine arrive at your workshop, we will send technician to your workshop to
install, test the machine and train your workers
.
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
4. Life-long after-sales service for machines.
Why choose us?
1. We are Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.
2.We can do full support for your complete project, from machine's manufacturing and
installment, supplying raw materials, designing your factory layout, workers training to
final production.
3.We have served customers from over 100 countries in the world till now.
4.We can offer you very good machines and service at good price. (we have our own parts processing workshop)
5.We are factory manufacturer, not trading company.
Efficient automatic underpad machine Models Available

Machine model	CD150-FC	CD150-HSV	CD200-SV
Design Speed(meters/min)	150	150	200
Stable Production Speed (meters/min)	100	100	150
Start Power (KW)	220	220	350
Practical capacity (KW)	200	200	320

Raw materials needed for producing Underpads
Underpads: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + SAP + hot melt adhesive + elastic adhesive
Packing & Delivery
Packing: Standard export package:pant anti-rust oil on machine, wrap machine with plastic film,
then put machine in wooden cases.
Delivery: 120 days after receiving the deposit
FAQ
Contact Information
Contacts: Amy
Mobile: 86 150 6095 1033
All your enquiries will be replied within 24 hours!

---
