High Speed Copper Fine Wire Drawing Machine with Annealing / Max 14Dies for Copper Cable Conductor Production

Product Description

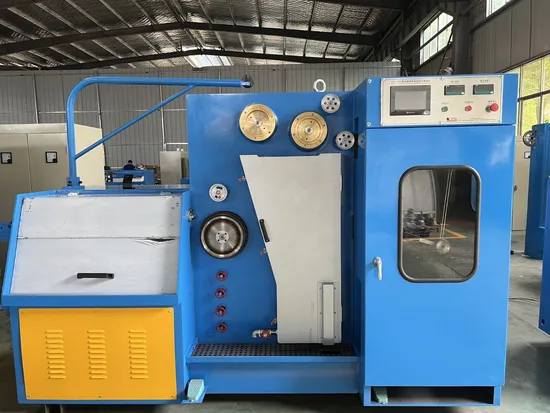

SW-14DT Fine Copper Wire Drawing Machine with Annealing Machine

Product Description
According to the needs of the market, the 14-die drawing with continuous annealing machine produced by our company has the following characteristics:
1. We improved production efficiency, which will increase enterprise revenue.
2. The production process is simplified, easy to operate.Personnel costs lower.
3. Nowadays, it is one of the most advanced intermediate and fine copper wire drawing with continuous annealing machine in the domestic.
4. Reasonable price, only 1 / 3 of imported equipment.
5. We have introduced the latest technology from Taiwan at the same time, and this product is a mature product.
Equipment composition

Equipment composition
SWAN-14DT Main machine	1Set
Pay-off machine	1Set
Electric control system	1Set
Steam generator	1Set

Product Parameters

Product Parameters
Machine type	SWAN-14DT
Inverter control	Double inverter control
Max. Drawing dies No.	14
Inlet diameter	Ø 1.00- 1.38mm
Out diameter	Ø0.26- 0.68mm
Drawing line speed	1200mpm/max
Slip ratio of m/c	15%
Fix speed capstan slip ratio	8%
Frame	Welded by steel plate
Capstan	Ceramic plasma capstan
Main motor	15kw
Spooler motor	3.7kw
Protection type	Steam or nitrogen
Spool bobbin size	Ø 300mm OR according to customers
Transmission type	By flat belts and Triangular band
Spooler control	PID Synchronous spooler
Detecting device	Weight balance by swing arm
Tension control	Weight balance type
Lubrication type	Spray type
Brake	Magnetic brake
Power source	380v 50 HZ or others

Detailed Photos

Workshop

Company Profile
SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development .The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service .Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc .China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future .
Customer feedback column

How to get a quotation:
For copper wire drawing machine , pls inform :
1: What is the inlet and outlet diameter range;
2: If you need annealing unit;
3: What is your take-up bobbin size ;
With specific above technical information , we can provide quotation accordingly . Thanks .

---
