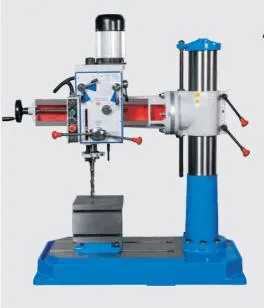

Vertical Manual Hydraulic Radial Arm Drilling Machine Z3032X7/Z3032X7p with Drilling Diameter 31.5mm

Product Description

Radial Drilling Machine Z3032X7/Z3032X7
With wide range of speed,with manual power feeds. The feed of machines are very easily engaged and disengaged at any time.The radial arm can rotated and can tilted + 45°, it reliable and easy job can be done. Main parts are made by machine center which import form KlA with high precision and efficiency, ensuring reliability and high quality. The machine with small appearance and much function, the machine are widely used for drilling,counterboring,reaming, tapping etc.

Specification:

Model No.	Z3032X7/Z3032X7P
Item No.
Moving
Max.drilling capacity	31.5 mm
Max.tapping capacity	Cast Iron 20mm steel 16 mm
Distance spindle axis to column generating line	300~700 mm
Diameter of column	150 mm
Spindle
Spindle taper	MT3
Spindle travel	130 mm
Spindle speed range	100~1600 r/min
Spindle speed series	8
Range of spindle feeds	0.08,0.14,0.23 mm/r
Rotary angle of rocker in horizontal plane	360°
Dimension spindle nose to working surface of base	275~680 mm
Dimension of worktable	250x250x250 mm
Dimension of base	1050x550x120/1235x625x1230 mm
Other
Overall size	1235x550x1195/1235x625x1230 mm
Power of main motor	750 or 1100 w
Packing dimension	122x62x128/127x69x137 cm
G.W/ N.W.	415/385,540/550 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
