Galvanized PVC Stainless Steel Concertina Razor Blade Barbed Wire Bto-22 Bto-60 Cbt-65 Fencing Wire Price

Product Description

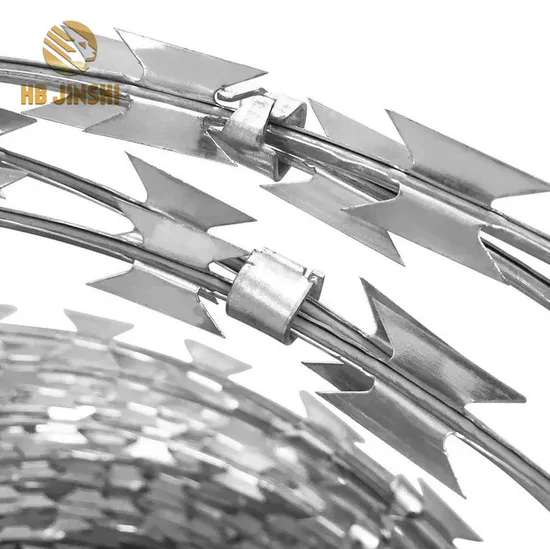

BTO-22 Hot Dipped Galvanized Concertina Razor Wire Fence
Razor Barbed Wire is also named concertina wire, razor barbed wire, fencing wire, or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties
I. Razor Wire Materials:
Blade: steel plate by one-time punching moulding
or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire
hot dipped galvanized steel wire
or stainless steel wire
II. Surface Treatment:
electro galvanized, hot dipped galvanized or PVC coated
III. Usual Specifications:

Reference Number	Thickness	Wire Dia	Barb Length	Barb Width	Barb space
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	36±1
BTO-28	0.5±0.05	2.5	28	15	46±1
BTO-30	0.5±0.05	2.5	30	18	46±1
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type

IV. Razor Wire Packing Details
1. compression rolls, 5rolls, 10rolls, or more rolls as one bundle
2. water-proof paper inside with woven bag outside
3. 1roll, 3rolls or 5rolls in one carton
4. as customer request
FAQ:
1. Are you trading company or factory?
We are professional manufacturer on wire mesh products for more than 15years, have our own International Trading Department, Quality Test Dept, Documentation Dept, Finance Dept, and After-sales Service Dept.
2. How can I get a quotation?
You will get a very competitive quotation at the shortest time as long as you send us inquiry with specifications and quantity you need!
3. What's your gurantee about the quality?
ISO9001, CO, SGS and any other quality inspection are accepted and certifications are available.
JINSHI, YOUR LONG-TERM COOPERATION PARTNERS !

---
