Homogenizing Tank High Shear Mixer Mixing Tank Gel Mixer

Product Description

STAINLESS STEEL mixer for paint creal gel dispersing homogenizing tank
customzed MIXING TANK WITH SCRAPER MIXER 36RPM 1000Liter
500l STAINLESS STEEL CONICAL BOTTOM MIXING TANK WITH SCRAPER MIXER 36RPM
CUSTOMIZED 1000L STAINLESS STEEL MIXING TANK WITH 40~200RPM MIXING SPEED

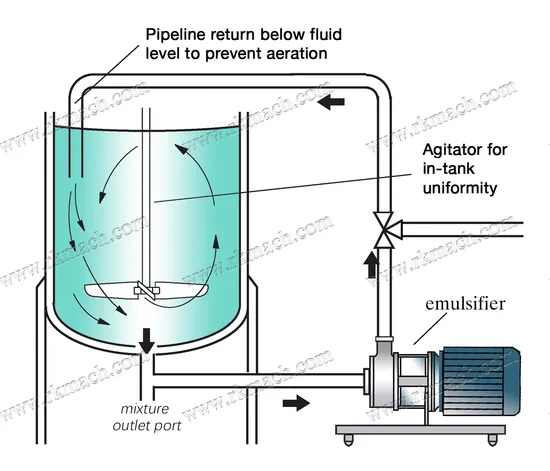

emuslifying mixing tank high shear homogenizer
ALL STAINLESS STEEL MIXING TANKS CAN BE CUSTOMIZED
INCLUDING SINGLE WALL, DOUBLE WALL AND TRI-WALL MXINIG TANKS, WITH OR WITHOUT HEATING FUNCTION.MIXING SPEED CAN BE FIXED AS LOW AS 25RPM, AS FAST AS 3000RPM, OR VFD CONTOL.
stainless steel Mix tanks are used by all industries and can be found in practically every production line no matter what is being produced. Ranking Machinery has the expertise to design mix tanks specifically for your application.
High Speed Turbine Mixers are used for blending fluids and suspension of solids. The speed, size and number of turbines are custom designed for each application.
Sweep Mixers provide gentle mixing of low to medium viscosity products and are available in side only, bottom only, or full side and bottom sweep. This mixer custom designed for each application to suspend solids and/or enhance heat transfer.
Scrape Mixers are similar to sweep except that they are fitted with teflon blades that scrape the walls like a spatula. They are used where high viscosity products are subject to "burn on" and/or scraping the vessel wall is needed to maximize heat transfer.
Counter Rotating Mixers use both turbine and scrape mixers for applications where a great deal of mixing is required, but the product is shear sensitive. The scrape mixer operates on a solid shaft that runs through the turbine mixer's pipe shaft. Each mixer is driven by its own gear motor allowing speed and horsepower to be matched to the process requirement. The gear motors stack with the scrape motor on the bottom and the turbine motor on top.
The Universal Mixer is also equipped with a scrape and turbine mixer, but the two mixers are completely independent of each other with the scrape mixer shaft in the center and the turbine mixer offset between center and the tank sidewall. The universal mixer allows for blending large batches (up to 5000 gallons) of viscous products while minimizing air entrainment.

Stainless Steel jacketed Tank	Jacketed Kettles	Stainless Steel 316 Tanks
Stainless Steel Agitated Mixing Tanks	Stainless Steel Insulated Tanks	Stainless Steel Jacketed Mixing Tanks
Stainless Steel Jacketed Process Tanks	Stainless Steel Pressure Tanks	Stainless Steel Product Storage Tanks
Jacketed Mixing Tanks	Stainless steel pressure vessel	Chocolate melting tanks

emulsifying mixing tank high shear mixer for cream gel liquid soap
1000Liter 1T Insulated mixing tank Non-insulated mixing tank price
(Stainless Steel 304 / 316L Mixing Tank)

---
