Factory Sale Solder Paste Printer Machine Automatic SMT Solder Paste Printer PCB Board Printing Machine Automatic LED Bulb Production Line

Product Description

High speed High precision SMT solder paste printing machine automatic pcb board printing machine Led TV PCB Production Line
With simple and reliable , accurate positioning and easy to adjust structure, SP-450 has the characteristics of high precision , high stability, high performance/price ratio and so on
Simple and reliable PCB positioning system
Adaptive PCB board thickness, software tunable flexible side pressure and magnetic supporting device.
High stability CCD camera system
Four-way light source adjustable, with uniform illumination and the perfect image collection, making the various types of Mark points can be a very good identification (including the rugged Mark point), to meet the tin. Gold-plated, spray tin, FPC, and other types of different colors of the PCB.
Intelligent scraper system
Programmable and independent direct-coupled stepper motor control, built-in precision pressure control system.
High efficiency stencil cleaning system
The new wiping system ensures full contact with the stencil, and the increased vacuum suction ensures that the solder paste remaining in the mesh is effectively removed, and the effective automatic cleaning function is achieved.

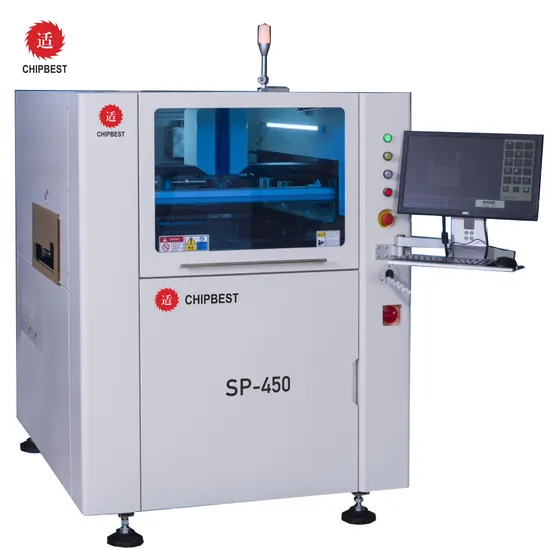

SP-450 automatic visual printer
Alignment precision: ± 10.0 micron/ μm @6σ, Cp≥2.0
Printing precision: ±20.0 micron/μm @6σ, Cp≥2.0

PCB parameters	-
Maximum board size (X x Y)	450mm x 350mm
Minimum board size (Y x X)	50mm x 50mm
PCB thickness	0.4mm~6mm
Warpage	Max. PCB Diagonal line 1%
Maximum board weight	6Kg
Board margin gap	Configuration to 3mm
Maximum bottom gap	20mm
Transfer speed	1500mm/s(MAX)
Transfer height from the ground	900 ± 40mm
Transfer orbit direction	Left-Right, Right-Left, Left-Left, Right-Right (Program Settings)
Transfer mode	One stage orbit
PCB clamping method	Programmable flexible side pressure (optional 1. Multipoint partial vacuum at the bottom 2. Edge locking and substrate clamping 3. Edge lock base clamp)
Support method	Magnetic thimble, equal height block, etc
Printing parameters
Printing head	Linear motor closed loop printing head
Template frame size	370mm x 470mm~737 mm x 737 mm
Maximum printing area	450mm x 350mm
Scraper type	Steel scraper/Glue scraper(angle45°/55/60matching the printing process)
Scraper length	220mm~500mm
Scraper height	65± 1mm
Scraper thickness	0.25mm Diamond-like carbon Coating
Printing mode	Single or double scraper printing
Demolding length	0.02 mm - 12 mm
Printing speed	0~200mm/S
Printing pressure	0.5kg- 10Kg
Printing stroke	±200 mm From the center
Image parameters
Field of View	6.4mm x 4.8mm
Platform adjustment range	X , Y:±7.0mm,0:±2.0°
Benchmark point type	Standard shape benchmark point (SMEMA standard), solder pad /openings
Camera system	Independent camera, upwards /downwards imaging vision system
Performance parameter
Repetition precision of image calibration	±10.0 micron@6σ , Cp≥2.0
Repetition precision of printing	±20.0micron@6σ , Cp≥2.0
Cycle time	<7s
Product Changeover	<5mins
Equipment
Power requirements	AC220V ±10%,50/60HZ,15A
Compressed air requirements	4~6Kg/cm2,10.0 Diameter of the tube
Operating system	Windows XP
External dimension	L (1140mm) x W (1450mm) x H (1480mm) (Without lights, monitor and keyboard)
Machine weight	about1000Kg
Temperature and humidity control module(optional)
Environment temperature	23±3ºC
Relative humidity	45~ 70%RH4

About Chipbest Chipbest supplies different kinds of products with High quality at a favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.About Chipbest.
Our Services 1. We Provide Full SMT Solution for You 2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
FAQ

Q: What we can do for you? A: One-stop SMT Solution Supplier; Reliable SMT Partner

Q: Are you a trade company or manufacturer? A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available.

Q: What is your delivery date? A: About 35-60 days after receipt of payment.

Q: What is your payment terms? A: 50% deposit in advance and 50% balance before shipment.

Q: What your main customers? A: Huawei, Foxconn, Vtech, Sumida, Kemet, Vishay, Bosch, Canon, Jabil etc.

Q: Why choose you? A: Leading SMT Supplier in China; Professional Supplier on ******; Trade assurance to USD 560,000+; Professional after-sales service team.

---
