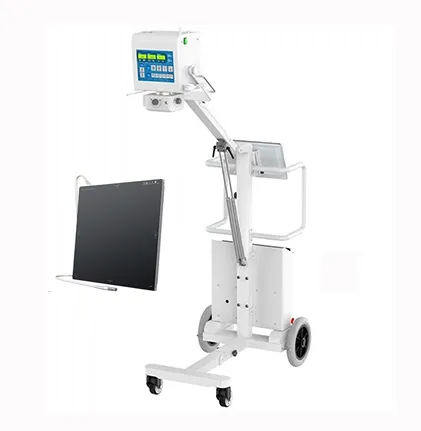

Advanced 5.6kw Portable Digital X-ray Machine for Radiography

Product Description

Digital Portable X-Ray Machine LCD Screen
5.6KW Product Parameters
Key features:
* Simple Stand design with wheels The mobile stand is flexible and convenient to meet various position
* The suitcase can be placed on the main X-ray machine, hand switch control, remote control, you can choose different exposure control.Also it's easy to transport and carry cos special compact structure.
* It can be widely use for human limbs checking, diagnosing, especially used in hospital room, ambulance, disaster relief, emergency medical treatment, sports events, charity organizations, diagnosis etc.
* Deft and concise
* 6 periods of digital LCD display
* Failure self-protection, self-diagnosis
* High precision control of tube voltage, tube current
* 48 kinds of presupposed anatomy memory pattern choice
* Accuracy control method of simulation and double digital loops
* X-ray tube complete surrender by lead for protect X-ray leaking
* Exposure by hand switch
* Exposure by remote control * Exposure by touch screen

Main Component Tech Spe.
	Voltage	AC220V ± 22V
Generator	Power	5.6kW
	kV Range	40~110kV
	mA Range	20~100mA
	mAs Range	0.2-200mAs
	Working Frequency	≥40kHz
	Exposure time	0.01S~4S
X-ray tube	Anode heat storage	56KHU
	Focus	1.8mm
	Inherent filtration	1mm Al/75Kv
	Light source	LED
Touch Screen	Dimension	10.4inch
Digital Flat Panle	17*17
Physical Spe.
Main Unit	Weight	19 kg
	Dimension	290×265×230 mm
