Factory Logistics Forklift 3.5 Ton Small Loading and Unloading Equipment Engineering Material Handling Forklift Wholesale 5 Ton Diesel Engine Forklift

Product Description

Product Description
LANDWARD is committed to serving customers, trying its best to meet their needs,
and providing better choices for all friends who need machinery! Diesel Forklift Introduction:

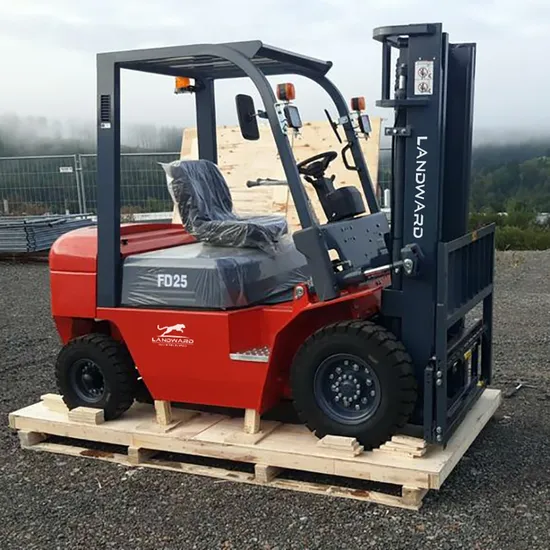

The FD series is a new type of counterbalanced forklift independently developed by LANDWARD. It adopts the world's advanced technology on the basis of the original product, and has been comprehensively upgraded in appearance, energy saving and environmental protection, comfort, safety and reliability, becoming a world-class forklift that meets your comprehensive needs. 24hours on-line services:
24 hours online service, if you have any questions about our products, please don't hesitate to contact me Detailed Photos
Product Parameters

Diesel Forklift		FD15	FD20	FD25	FD30	FD35	FD40	FD50
Fuel model		diesel fuel	diesel fuel	diesel fuel	diesel fuel	diesel fuel	diesel fuel	diesel fuel
Load capacity	kg	1500	2000	2500	3000	3500	4000	5000
Load center	mm	500	500	500	500	500	500	500
Lift height	mm	3000	3000	3000	3000	3000	3000	3000
Full free lift height	mm	100	100	100	100	100	0	0
Fork dimension	mm	920×100×35	1070×122×40	1070×122×40	1070×125×45	1070×125×50	1070×150×45	1070×150×50
Mast tilting angle	Deg.	6/12	6/12	6/12	6/12	6/12	6/12	6/12
Min.turning radius	mm	1955	2220	2240	2400	2550	2800	3050
Groud clearance	mm	110	120	120	135	135	135	140
Overhead guard height	mm	2040	2140	2140	2165	2165	2230	2290
Front overhang	mm	425	448	485	495	495	500	570
Max travel speed	km/h	13.5	19	19	19	19	18.5	25
Max lift speed	mm/s	590	550	550	480	480	420	430
Max.traction power	KN	12.3	12.3	12.3	13.5	13.5	20	23
Max. gradeability	%	20	20	20	20	20	20	18
Total length with fork	mm	3175	3523	3610	3820	4065	4105	4520
Total length without fork	mm	2255	2453	2540	2750	2995	3035	3300
Total width	mm	1070	1160	1160	1225	1225	1400	1480
Mast extended height	mm	4030	4220	4220	4265	4265	4270	4300
Mast lowered height	mm	1995	2060	2060	2060	2060	2190	2190
Tyres Front		6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR	250-15- 12PR	300-15-20PR
Type Rear		5.00-8-8PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	700-12-12PR
Wheelbase	mm	1410	1600	1600	1700	1700	1900	2200
Tread	mm	890/920	970/970	970/970	1000/970	1000/970	1160/1065	1180/1190
Service weight	Kg	2660	3200	3800	4350	4560	5300	6900
Battery	V/Ah	12/80	12/80	12/80	12/80	12/80	12/100	(12/80)x2
Engine power	kw/r.p.m	32	36.8	36.8	36.8	36.8	36.8	60
Transmission		Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Work press	Mpa	18.5	18.5	18.5	18.5	18.5	18.5	18.5

The FD Series diesel forklifts manufactured by LANDWARD are designed to provide simple, powerful performance for a variety of jobs. Combining durability and ergonomics, the FD Series forklifts are equipped with specially designed forklift engines and gearboxes and drive shafts, and the forklifts are driven by a powerful power transmission system. Our FD diesel forklifts will be able to meet your needs, providing quality and economical options.Features:
1. The core components such as gearbox and drive axle are jointly manufactured, and the key components are imported, with low failure rate and reliable quality
2. Equipped with cast steering axle, compact structure, small load deformation, dustproof and waterproof, improving service life and reliability
3. Adopting a wide field of view gantry, with a wide field of view; The section of the gantry channel steel is enlarged, and the overall structure is sturdy and reliable!
4. It adopts a large opening angle integrated machine, with an internal frame reinforcement plate structure, high strength, quality, and reliability!
5. Adopting a new type of mechanical locking mechanism, the mechanical opening and closing are more flexible and reliable in locking
6. The iron shell large air filter is used, with high strength and aging resistance. Can better adapt to harsh working environments
7. The lifting system is equipped with explosion-proof safety valves to ensure safety during the lifting process of heavy objects
8. The boarding pedal adopts a fully anti slip pedal to ensure the safety of forklift drivers getting on and off the vehicle
9. The connection between the steering bridge and the frame is supported by damping rubber pads, reducing the vibration of the entire vehicle and improving the comfort of the operator
10. The large opening angle of the machine and the external maintenance components such as the oil filter make maintenance and repair more convenient
Diesel forklifts are designed to handle a wide range of material handling tasks and can be customized with a range of load handling attachments. Regardless of size, series, model or configuration, FD counterbalance forklifts have the strength and durability for long-term use.

Company Profile
About LANDWARD Machinery
The history of LANDWARD development can be tracked back to 1997 as a small Auxiliary Factory(named Jimo Iron works in a small village) which taking the steel plate cutting.
In the early 21th century, Landward shifted towards expanding into new business to welding and produce structural parts for loader factories.
In 2009, Landward started the research and development of dumpers, and in the next year we began to produce forklifts. We were posed many challenges but also created opportunities for innovation and adaption.
In 2018, we engaged in small machine, like small excavators, mini dumpers, mini wood chippers at the time when the Euro market begin to accept Chinese mini machine.
On Jan.5, 2024, the company has been renamed to its current name-Landward(Shandong) HI Group, aimed at developing engineering equipment to the world.
Today, Landward continue to evolve in response to technology, globalization, and leading customers' life forward. The development of artificial intelligence, renewable energy and e-commerce are shaping the future of Landward, creating new opportunities and challenges. We engaged on playing a vital role in driving the quality growth and improving customers' life easier.
Welcome dealers from the world for sharing a similar vision to generate value for the customers. We sincerely welcome clients and friends to visit us and join us.

---
