Product Description
Product Description

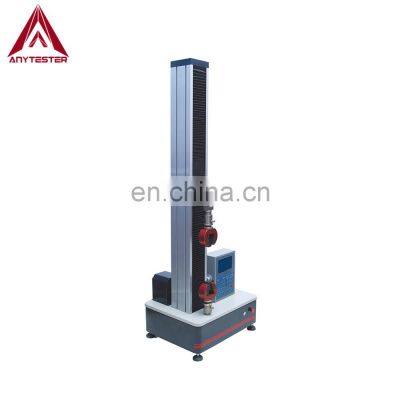

Product DescriptionAT441 Electronic Universal Testing Machine is used for tensile, compression, bending, tearing, peeling, bursting and other tests of a wide range of materials with different clamps. It is suitable for various metallic and non-metallic materials, such as rope, belt, silk, film, fabric, rubber, plastic, etc.StandardASTM D3787, 4964,5034, 5035ASTM E9-89aISO13937, ISO 5081, ISO6892-1DIN 53859, DIN 53858BS3320, BS4303, BS2576GB/T 3923.1, GB/T 3917JIS L1096SpecificationModelAT441Load range0~100N (0~2000N, 0~5000N optional)Accuracy gradeGrade 1Test force range2%~100%Test force error＜±1%Test force resolution1/300000 of max. test forceDeformation range2%~100%Deformation error＜±1%Deformation resolution1/300000 of max. deformationDisplacement error＜±1%Displacement resolution0.001mmTensile travel800mmTensile speed0.01mm/min～500mm/min, stepless adjustablePower supplyAC220V±10%, 50HzDimensions500mm×398mm×1505mm (L×W×H)Weight100kgDetails & Features★ Adopt CRE measurement mechanism, PLC control, automatic data processing, real-time determine and display test force and peak value, displacement, deformation, etc. Real-time display load-deformation, load-displacement and other test curves, these curves can switch an time. It is also very convenient to enlarge and reduce the test curves.★ With over-load, over-current, over-voltage, upper and lower limit of displacement, emergency stop and other protection function.★ With built-in controller★ After test, it can quickly return to initial position manually or automatically.★ Electric control circuit conforms to international standard to ensure stability of controller and accuracy of test data.★ With network interface to acquire data transmission, storage, printing and network transfer printing.★ Different load range can be optional for this machine, 5000N max.★ Various clamps can be optional to perform different test standards.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
