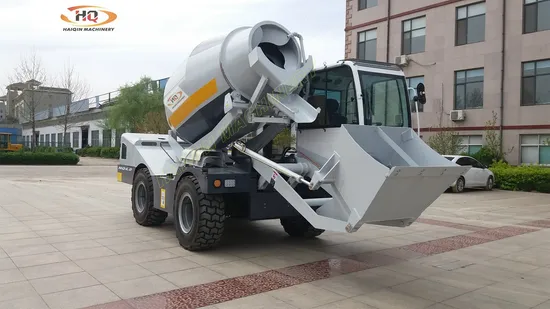

Haiqin Brand Self-Loading Mobile Concrete Mixer (HQ4.0) for Sale

Product Description

Haiqin Brand Self-Loading Mobile Concrete Mixer (HQ4.0) introduction .
1, Standard Configuration and Feasures:

1) With Chinese YTO 85KW or Yunnei 95kw ENGINE, Cummins engine for option .
2)Chassis frame and the tank are made of manganese steel.the drum thickness is 6mm and buttom of the drum is 8mm.
3)Four wheel drive with 4 wheel air brake
4)Max.15 ton loading axles with good performance with the machine with full concrete loading
5)CVT transmission have good quality,Easier operate and never flameout at rough terrain.
6)Luxury cabin with FOPS&ROPS approved,With adjustable steer wheel,Luxury seat,Single handle joystick powershift control
7 about the rotation ,we use Eton Slewing motor, Chinese brand mixing motor
8)Discharge chutes removable and angle changable
9)Famous brand Camel battery with Big AH
10)Hydraulic water pumping system,With water meter.High pressure washing gun.
11) weighting system with print.
2,Interior photo of the mobile concrete mixer Cabin :
3, Clean production line :
4, Actual work picture of Haiqin Brand Mobile concrete mixer :
5, Loading pictures:
6, Details Specifications :

Drum capacity	5.5m³
Concrete output	4m³.
Loading ratio	76%
Rotary drum	Discharge mouth height 1.8 meters.Level turn 300 ° (options)
Production capacity	4 batches in an hour.16 cubic meters per hour
ENGINE	YTO 85KW or Yuchai 95KW or Cummins
transmission way	Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4.
Climbing ability	30%
speed	Low speed 0-25 km/h, high speed 0-45 km/h.
CAB	Ultra wide deluxe cab . ROPS type.
hydraulic system	Open feed, two gear pump participate in action.
joystick	A four-way hydraulic pilot with an electric control button controls the bucket.
bucket	650L, hydraulic gate.
chute	Equipped with two removable shaft pins to increase the discharge length.
Water supply system	Self-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional).
brake	inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub.
Turn	Hydraulic steering, rear wheel steering.
tyre	16/70-20 wire tires
power system	24V
OIL TANK/water tank	2 x210L water tank. Diesel tank: 125 litres.Hydraulic tank: 130 litres.
weight	7600KG
L*W*H	7500MM*2700MM*3380MM
wheelbase	2.35M
metering	Electronic weighing system (optional).

---
