Single-Round Sanitary Liquid Filter Housing Sterile Filter for Wine Filtration

Product Description

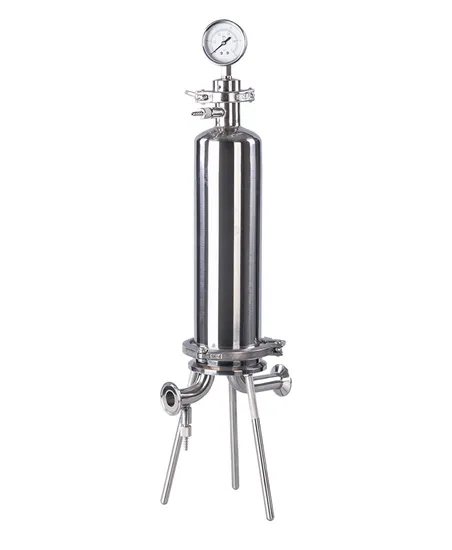

SCF Series Single Cartridge Filter Housings used for small flow rate liquid filtration,it is constructed of stainless steel material,inside and outside surface is electropolished finish,sanitary grade.It has the vent valve and clean drain,hose barb port.

Product Specification

Material of Constructions	Shell	S304,S316L
	Clamp	S304
	Mounting Leg	S304
	O-Ring	EPDM,Silicone,
Parameters	Maximum Operation DP	0.6MPa
	Maximum Operation Temperature	150ºC
	Surface Polishing	Inside Ra<0.4um,electropolished finish, Outside Ra<0.8um,electropolished finish
	Port	Inlet:DN25, Outlet:DN25
	Vent Port	1/4"
	Liquid Port	1/4"
	Connection Model	Quick Opening

Ordering Information (EG: PSCFJ05PS)

PSCF	Shell Material	Length	Connection	Seal Material
	J = S304	05 = 05"	P = 222	S = Silicone
	K = S316L	10 = 10"	Q = 226	E = EPDM
		20 = 20"	F = Double Open End
		30 = 30"
		40 = 40"
