Swiss Type CNC Lathe Automatic Lathe of Double Spindle and Double Blade Row Firm Rigidity

Product Description

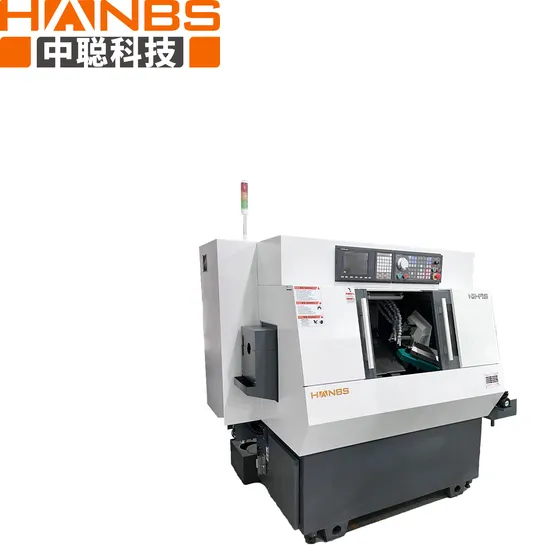

P15 - Automatic Lathe of Double Spindle and Double Blade Row Firm Rigidity

Multi-process Integration:
Capable of integrating various processes (e.g., turning, milling, drilling, tapping) on a single machine, reducing the time and errors associated with transferring workpieces between different machines. High Level of Automation:
Many Swiss-type lathes are equipped with automatic bar feeders, enabling 24/7 continuous production, significantly boosting productivity and output. Advanced control systems and programming features simplify operations and reduce programming and setup time. Reduced Scrap Rate:
High precision and stability result in a lower scrap rate, saving material and costs. Advanced monitoring and feedback systems can detect and adjust machining parameters in real-time, further improving yield. Product Photoes
Product Photoes
The dual spindle design allows for simultaneous machining on both the main and sub-spindles, significantly improving production efficiency. One spindle can perform roughing, while the other can handle finishing or secondary operations.

The dual gang tool design allows more tools to be mounted, reducing tool change time and enhancing overall production speed and efficiency.

Capable of integrating various processes (e.g., turning, milling, drilling, tapping) on a single machine, reducing the time and errors associated with transferring workpieces between different machines.
Product Information

Processing parameters	Maximum processing diameter	φ26mm
	Maximum machining length 2.5D	50mm
	Maximum axial drilling diameter	M10mm
	Maximum axial tapping size	M8
	Max. spindle speed (short time)	10000rpm
	Max. back spindle speed (short time)	12000rpm
	Max. workpiece removal length	40mm
Maximum stroke	X1 axis	375mm
	Z1 axis	180mm
	X2 axis	375mm
	Z2 axis	180mm
Cutting tool	Size of cutter plate	390mm
	Maximum number of tools	8
	Tool (turning tool)	φ16X16
	Sleeve	φ25
	Height from tool plate holder to spindle centre	45mm
Collet	Spindle collet	HB26
	Back spindle chuck	HB26
Feed rate	X1/X2 axis feed rate	15m/min
	Z1/Z2 axis feed speed	15m/min
Motor	Spindle drive power	2.5/3.7KW
	Back-axis drive power	1.5/2.5KW
	X1 X2 Z1 Z2 power	1.1KW
	Cutting oil	0.4KW
Other	Spindle centre height	1010mm
	Air pressure flow	0.7mpa 0.5m3/min
	Main breaker capacity	40A
	Input power	5.4KW
	Weight	2700Kg
	Dimension	1950X1455X1700mm

Sample Display

Factory
Certifications
Shipping and Packing


Product Uses

The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
1. Equipment Cost Q: How much does a dual spindle dual gang Swiss-type CNC lathe cost? A: The price varies depending on the model and specific configuration. Please contact our sales team for detailed pricing. 2. Application Range Q: What types of parts are suitable for a dual spindle dual gang Swiss-type CNC lathe? A: This equipment is suitable for processing complex, high-precision parts, covering multiple industries such as automotive components, aerospace, and medical devices. 3. Operator Training Q: How long does it take to train operators? A: Basic operation training usually takes 1-2 weeks. We also offer ongoing technical support to ensure smooth operation. 4. Equipment Reliability Q: How reliable is the dual spindle dual gang Swiss-type CNC lathe? A: Our equipment is rigorously tested for high reliability and has a low failure rate. It comes with comprehensive after-sales service support. 5. After-Sales Service Q: What after-sales services do you offer? A: We provide equipment installation, operator training, regular maintenance, and emergency repair services. Our technical support team is always ready to assist. 6. Technical Specifications Q: What are the technical specifications of this CNC lathe? A: Technical specifications include machining precision, maximum workpiece size, and more. Please refer to the product manual or contact our technical support team for details. 7. Flexibility and Scalability Q: Can the equipment be upgraded or expanded to meet future needs? A: Yes, the equipment is highly flexible and scalable, and can be upgraded and configured according to future requirements. 8. Production Process Optimization Q: How does the dual spindle dual gang design optimize the existing production process? A: The design allows for simultaneous machining and multitasking, which reduces processing steps, increases machining precision, and improves overall production efficiency. 9. Tool Wear Q: Does simultaneous multi-tool operation increase tool wear? A: Simultaneous multi-tool operation distributes the load among the tools, which can reduce wear on individual tools and extend their lifespan. 10. Energy Consumption Q: What is the energy consumption of this CNC lathe? A: Energy consumption depends on the specific model and operational parameters. Please contact our technical support team for detailed information on energy efficiency. If you have any other questions, please feel free to contact our sales or technical support team.

---
