Vertical Milling Machine Zx32g Worktable Milling Machine Price

Product Description

FAQ

Product Description

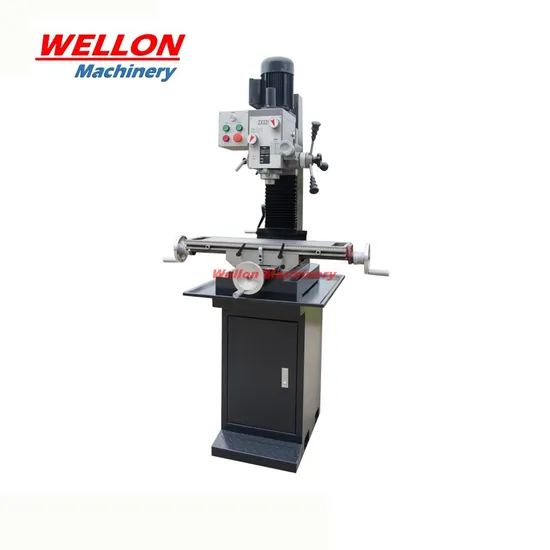

Vertical Milling Machine Zx32g Worktable Milling Machine Price
Performence Features:
CE high precision Drilling and Milling machine
High strength column
Good strength gear grinding ,low nose
Head stock tilts left and right
Wide electrical box,easy operation
High precision manual feeder
Depth ruler,easy operation and read out Technical parameter:

Specification	ZX32G
Max.drilling capacity	32mm
Max.tapping capacity	16mm
Max.face milling capacity	63mm
Table size	700X190mm
Spindle taper	MT3/R8
Cross travel	190mm
Longitudinal travel	320mm
Vertical travel	310mm
Spindle stroke	75mm
T Slot size	12mm
Spidle speed	60-1650rpm
Headstock tilt left and right	90°
Column size	150X130X690
Stand size	550X340
Distance from spindle to column	320mm
Max.distance from spinde to table	400mm
Power	750W
N.W/G.W	170/200

Standard Accessories:
1.Spindle deep ruler
2.Morse taper
3.Draw bar
4.Tool kit
5.drill chuck with arbor
Optional Parts:
1.Speed display
2.Vice
3.Milling chuck set
4.Keyless chuck
5.58PCS clamping tool kit 6.Coolant system
7.Stand base
Company Profile
Packaging & Shipping

---
