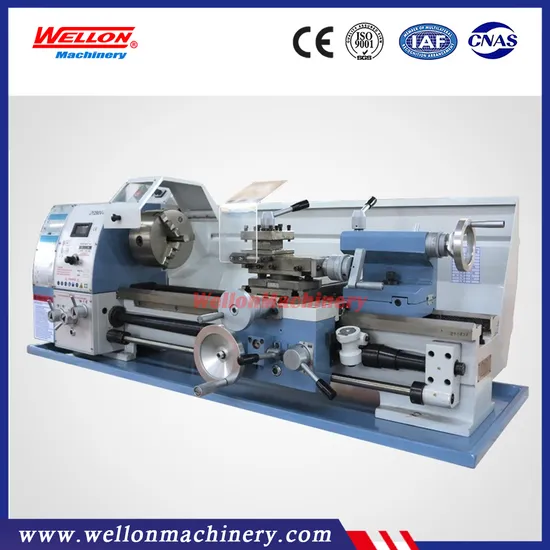

Metal Mini Lathe Machine JY280VF Metal Mini Turning Lathe

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
1. V-way bed is hardened and precision ground.
2.Super width bed way gets more capacity.
3.Independent leadscrew and feed shaft.
4.Power cross feed function.
5.Automatic feed and threading are fully interlocked.
6.T-slotted cross slide.
7.Right & left hand threads cutting is available.
8.Tailstock can be offset for turning tapers.
9.Tolerance test certificate, test flow chart included.
10.JY280 with Spindle speed 6 steps,range 125-2000 rpm, JY280V Variable spindle speed, range 50-2000rpm.
Technical parameter:

Model	JY280V-F
Distance between centers	700mm
Swing over bed	280mm
Swing over cross slide	165mm
Taper of spindle bore	MT4
Spindle bore	26mm
Number of spindle speeds	6/variable speed
Range of spindle speeds	125-2000/50-2000rpm
Range of cross feeds	0.02 -0.28mm /r
Range of longitudinal feeds	0.07 -0.40mm /r
Range of inch threads	8-56T.P.I
Range of metric threads	0.2 -3.5mm
Top slide travel	80mm
Cross slide travel	140mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT2
Motor	0.75/1.1KW
Packing size	1400x700x680mm
Net weight	210/230kg

Standard accessories:
3-Jaw chuck
Splash guard
Chip tray
Toolbox &tools
Optional accessories:
Steady rest
Follow rest
Face plate
4 jaw chuck
Live center
Stand base
Lathe tools
Thread chasing dial
Spindle cover
Lead screw cover
Tool post cover
Side brake
DRO
Quick change tool post
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
