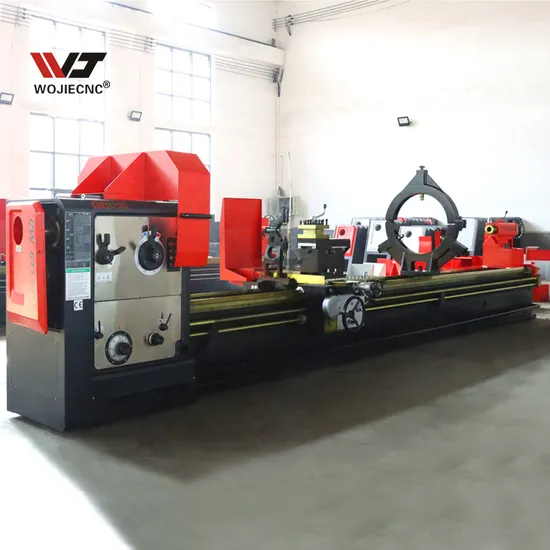

Cw61140 Heavy-Duty Lathe Equipment, Powerful Performance to Promote Efficient Production

Product Description

Product Description
This series lathe machine is suitable for internal and external turning, tapering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot. This machine could be machining steel, casting, nonferrous metals etc. The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness. The Machine with handle breaker, easy to operate, safe and reliable.
Product Parameters

SPECIFICATION OF YIMAKE LATHE MACHINE
ITEMS		UNIT	CW61140B Lathe
Capacity	Swing over bed	mm	Φ1400
	Swing over cross slide	mm	Φ1000
	Distance between centers	mm	3000/4000/5000
	Width of bed way	mm	755
	Max. load capacity	T	6
Spindle	Spindle bore	mm	Φ130
	Spindle nose taper	-	Metric 140 MT#6
	Spindle nose type	-	A2-15
	Spindle speed steps	-	FWD.21 steps
	Spindle speed range	rpm	3.15-315
	Chuck size	mm	Φ1000
	Chuck type	-	4-jaw manual
Turret	Turret type	-	Manual turret 4 position
	Tool shank size	mm	45x45
Feed	X axis travel	mm	620
	Z axis travel	mm	2850/3850/4850
	X axis feed grade/range	mm/r	56/0.05-6
	Z axis feed grade/range	mm/r	56/0.1-12
	X axis rapid traverse speed	mm/min	1870
	Z axis rapid traverse speed	mm/min	3740
	Metric thread grade/range	mm	44/1-120
	Inch thread grade/range	T.P.I.	31/28-3/8
Tailstock	Tailstock quill diameter	mm	Φ140
	Tailstock quill taper	-	MT#6
	Tailstock quill travel	mm	300
Motors	Main spindle motor	kW	22
	Rapid traverse motor	kW	1.5
	Coolant pump motor	kW	0.125
Dimensions	Width x Height	mm	2250×2050
	Length	mm	6100/7100/8100
Weight	Net weight	T	12.3/13.5/14.5

Detailed Photos



Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
