10% off Metal Hydraulic Arm Radial Drilling Machine Z3050X16 Universal Radial Drilling Machine Price

Product Description

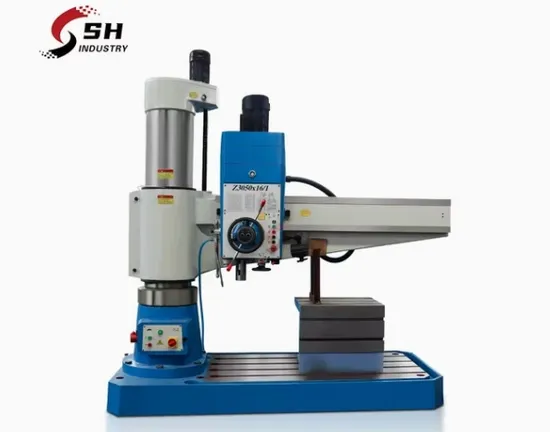

Metal Hydraulic Arm Radial Drilling Machine Z3050X16 Universal Radial Drilling Machine Price
Product Description
The main performance characteristics:
Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance
Specifications:

SPECIFICATIONS	Z3050×16
Max.drilling dia (mm)	50
Distance from spindle nose to table surface(mm)	320-1240
Distance between spindle axis and column surface (mm)	350-1640
Spindle travel (mm)	315
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	25-2000
Spindle speed step	16
Spindle feeding range(r.p.m)	0.04-3.2
Spindle feeding step	16
Rocker rotary angle (°)	±90°
Main motor power (kw)	4
Movements motor power (kw)	1.5
Weight (kg)	3500
Overall dimensions (mm)	2500×1060×2800

Detailed Photos


Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
