Factory Direct Sell Small Gearbox for Agriculture Machinery

Product Description

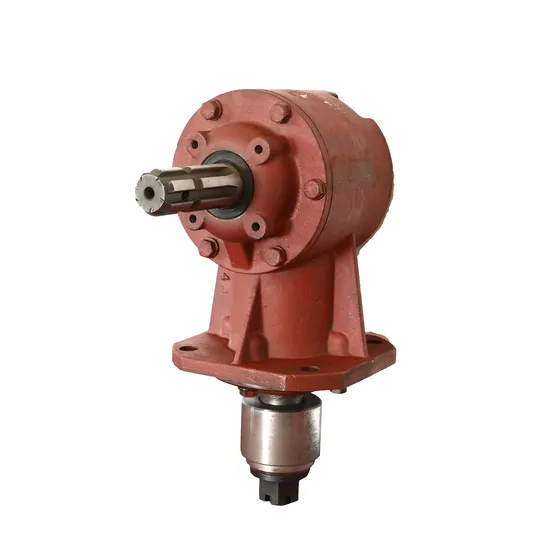

small gearbox

1. Product Description

MODEL	INPUT DATA					OUTPUT DATA
	Ratio	Maximum Rpm	KW	HP-CV	N.M	N.M	R.P.M
AC78845A/B	1:1.93	800	30	40	358	185	1544
RC	1:1.93	800	30	40	358	185	1544
RC5/BB60X	1:1.69	800	37	50	440	260	1352
AC78846A/B	1:1.93	540	55	75	972	504	1042
612619	1:1.93	540	74	100	1308	678	1042
612666	1:1.46	540	74	100	1308	896	680
BB84X	1:1.26	540	67	90	1184	940	680
RC81-000-01	1:1.923	540	74	100	1308	680	1038
RC81-000-02	1:1.46	540	74	100	1308	896	788
75356-192	1:1.92	540	97	130	1715	893	1037
75356-146	1:1.46	540	97	130	1715	1175	788
74823-19	1:1.87	540	97	130	1715	918	1009
74823-14	1:1.39	540	97	130	1715	1235	750
GT40U.B	3:1	540	44	60	778	2334	180
SF-100	1:1	540	15	20	265	265	540
MCT-100A1	7.5:1	540	29.5	40	521	3912	72
MCT-100A2	22.5:1	540	29.5	40	521	11738	24
DCR1-0000	2.4:1	540	37	50	654	1570	225

2. More Products
3. The Drawing Of Gear Box
4. Production and Packing
5.Shipping
6.Our Company
Qingdao Daechang Tech.Machinery Co.,Ltd was founded in 2003. It is located at Laixi County, Qingdao City, closed to 204 National Road.Our main products: 1. all kinds of drive shaft 2.all kinds of gera box 3. Farm machinery: IMT500 inorganic fertilizer spreader, HMT05S organic fertilizer spreader, 3M rotovator , 3M wet-paddy field rotary, King 185 deep cultviating machine and so on. 4.The machinery parts: many kinds of Gear, Shaft, Flang, ,Gear box, Laser parts, Stamping parts and so on.

7. FAQ 1. Q: Are your products forged or cast?
A: All of our products are forged.
2. Q: What's your MOQ?
A: 20 PCS for each type. We accept the sample order.
3. Q: What's the horse power of the pto shaft are available?
A: We provide a full range of pto shaft, ranging from 16HP-200HP.
4. Q: How many splined specification do you have ?
A: We produce 1 1/8"-Z6, 1 3/8"-Z6, 1 3/4"-Z6, 1 3/8"- Z21, 1 3/4"-Z20, 8X42X48X8 and 8X32X38X6 splines.
5. Q: How about the warranty?
A: We guarantee one year warranty. With quality problems, we will send you the new products for free within next shipment.
6. Q: What's your payment terms?
A: T/T, L/C, D/A, D/P….
7. Q: What is the delivery time?
A: 40 days after receiving your advanced deposit.

---
