High-Quality Plastic Extruder for 3D Printing Filament Production

Product Description

Product Description

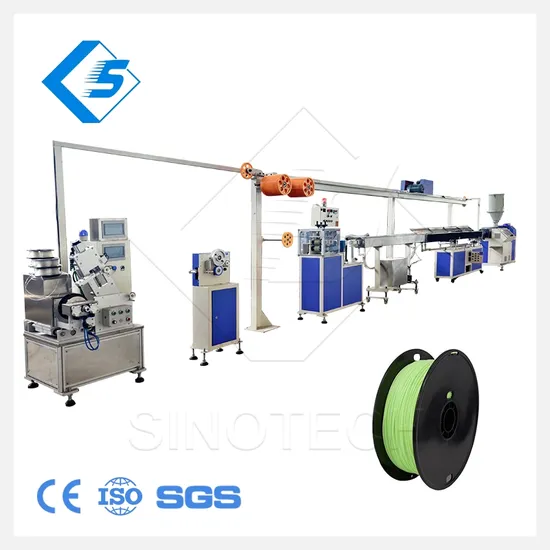

Lab Mini ABS PLA PETG Plastic 3D Printer Filament Extrusion Production LineProfessional 3D Filament Extruder Supplier has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.
Main Features
Feature: Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,1. ABS filament process temperature is 230-260° C,melting point is 230° C2. PLA 3D printer filament is 210-235°C, melting point is 200°C3. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.4. PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C 5. PC temperature for printer is 230°C-250°CMelting point is 260°C. 6. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C. Detailed information : Production Process: Raw plastic material is mixed and fed into the extruder. The extruder shapes the material using a mould, and the formed product goes through a hot water tank for further shaping. It then enters a cooling water tank to cool down. A laser gauge is used to measure the diameter of the product for quality control purposes. The traction machine pulls the product, while an accumulator stores the wire. Finally, the winding machine automatically winds the product.
Production Line Features:
1. The production line is equipped with a high precision Siemens PLC control system.
2. The entire line operates with servo motor and precision gearbox drive, ensuring stable extrusion, smooth running, and accurate speed control.
3. The FLD production line incorporates an Automatic Feedback System for improved efficiency.
4. All devices on the line are centrally controlled through a computer screen, enabling easy and convenient operation.
Product Parameters

SN-25 Mini 3D printer filament Extrusion
Control System	PLC touch screen
Feed back control system	Between laser gague and screw speed
power consumption and power supply	6KW Triphase 380/50 Hz
Raw Material	ABS/PLA/PETG/WPC
Filament Diameter:	1.75 mm. / 3 mm.
Diameter tolerance	0.05mm
Output Capacity	2.5-3kg/h
Hopper drier: one set	12KG Volume
Main Motor Power	2.2KW
Max. Heating Temp.	300degree
Heating Power:	3KW
Machine Size	3000*600*1800mm
Machine net weight	480KG
Machine gross weight	450KG
Screw	Single screw Extruder
Diameter	25 mm.
L/D	28:1
Raw material	38CrMoAlA
surface treatment	Nitrogenization and polished
Inner surface treatment	Nitrogenization and polished
Barrel
Material	38CrMoAlA
Inner surface treatment	Nitrogenization and polished
The nitride layer thickness	0.5~0.7 mm.
The surface hardness	HV850~940
Heating control zone	6
Mould, a connecting body	1
Water tank	1 SET
Raw material	304#
Size	1200x100x120mm
Single Axis Laser gauge unit	1 SET
Model NO	LST-25
Measurement range	0-25mm
Fouor wheel puller	1 SET
Rated Power	0.37KW
Control style:	Inverter control
Diameter of wheel	Φ80 mm
Material of wheel	PU rubber coated
Single Auto winder	1 SET
Applicable spool size	Max.diameter : 300 mm. Width:100 mm.
Power	0.37W
Control style	inverter control
Drive	Timing belt control
machine frame	SS steel machine frame

Detailed Photos
Final Product
Company Profile

Packaging & Shipping
FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
