CNC Milling Drilling Tapping Machine with Taiwan Spindle Bt30 20000rpm

US$28,000.00
1 Piece
US$18,000.00
2+ Pieces

Basic Info.

Model NO.
T6
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt30
Spindle Motor
5.5kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
300kg
Name
CNC Drilling Tapping Machining Center
X/Y/Z Speed
48/48/48 M/Min
Tool Alignment
Auto Tool Checking
Working Table
700*400
Precision
+-0.005/300mm
Repeat Precision
+-0.003mm
Power
5.5kw 380V 3 Phase
Spindle Speed
20000 Rpm
Max Working Speed
10m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
3 Axis CNC Machine
Transport Package
Sea Worthy Plywood Case
Specification
1880*2600*2700
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8459619000
Production Capacity
2000PCS/Year

Product Description

Fanuc Control Vertical CNC Drilling Tapping Milling Machine Center for Metal T6
Product Description
T640 is a high-speed drilling and tapping center machine tool, which adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, countersinking, and tapping. This machine is suitable for multi-variety processing of complex parts such as medium and small boxes, plates, discs, shells, etc. It is widely used in 3C products, IT equipment, optical equipment, medical equipment, and aluminum alloy products.
Product Paramenters

Item Unit T-540 T-640 T-1065 T-1365 T-1600
Journey
Three-axis travel (X/Y/Z) mm 500/400/300 600/400/300 1000/650/300 1300/650/300 1600/500/300
Distance from spindle centerline to column guide surface mm 466 466 716 716 516
Distance from spindle nose to work table mm 150-450 150-450 150-450 150-450 150-450
Workbench
Table size (length X width) mm 650X400 700/400 1100X650 1400X650 1700X400
Maximum load kg 300 300 450 450 450
Number of T-slots X Slot Width X Spacing 3X14X121 3X14X120 51X4X120 51X4X120 3/14/121
Spindle
Spindle speed rpm 20000 20000 20000 20000 20000
Spindle taper hole BT30 BT30 BT30 BT30 BT30
Spindle motor power kw 3.7/5.5 3.7/5.5 3.7/5.5 3.7/5.5 3.7/5.5
Speed
Rapid traverse speed (X/Y/Z axis) m/min 48/48/48 48/48/48 30/48/48 30/48/48 30/48/48
Cutting feed rate m/min 10/10/10 10/10/10 10/10/10 10/10/10 10/10/10

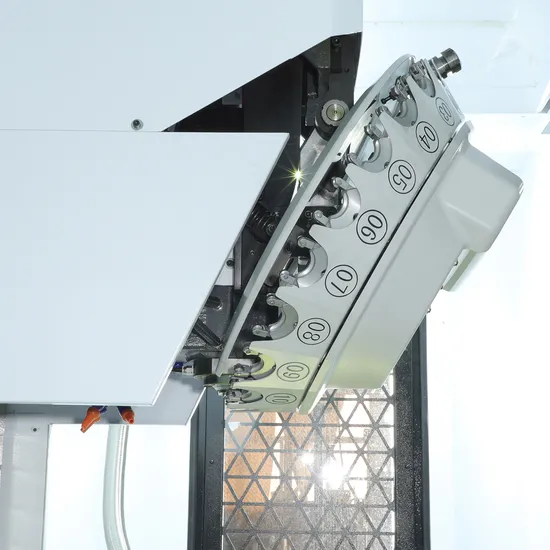

Tool magazine
Number of tools pcs 21 21 21 21 21
Tool diameter/length/weight Ф60mm/200mm/3kg Ф60mm/200mm/3kg Ф60mm/200mm/3kg Ф60mm/200mm/3kg Ф60mm/200mm/3kg
The maximum diameter of the tool (full knife / adjacent empty knife) mm 60/80 60/80 60/80 60/80 60/80
Machine tool accuracy
Positioning accuracy (X/Y/Z) mm 0.008 0.008 0.01 0.01 0.012
Repeated positioning accuracy (X/Y/Z) mm 0.005 0.005 0.006 0.006 0.008
Other
Air source/air pressure 280L/min6-8bar 280L/min6-8bar 280L/min6-8bar 280L/min6-8bar 280L/min6-8bar
Total capacity of machine tools KVA 15 15 15 15 15
Tank volume L 160 160 220 220 230
Machine tool dimensions (X/Y/Z) mm 1880X2600X2700 1880X2600X2700 2700/3220/2900 3300X3220X2900 3850X2680X2700
Machine Weight (Approx.) kg 3200 3300 4000 4400 4100
