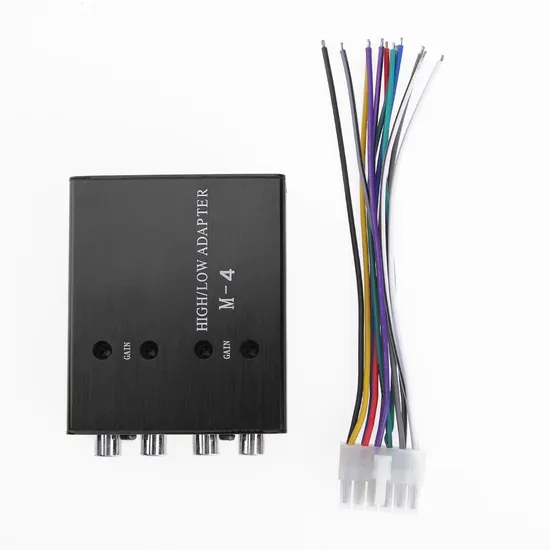

High to Low Frequency Speaker Converter 4CH RCA Amplifier

Product Description

Specifications: Features :
- Converts car stereo speaker Outputs to RCA outputs.
- Allows the addition of 2 or 4 channel amplifiers to most stereos without RCA outputs.
- Allows the addition of amplifier and subwoofer to existing factory systems.
- Adjustable level matching from 0 to 2 volts.
- For car stereos up to 80 watts.
- Easy to follow illustrated instructions.
- The ordinary high turn low has no delay function, so when installing the power amplifier or the bass gun, it usually chooses the control line of the power amplifier to receive the ACC line, such an open key, no matter whether the player is open or not, the power amplifier will be electrified, and sometimes it will make the power amplifier produce the current shock of porphyrin. This product is played by the player. When the horn is opened, the horn will work when it signals, and at the same time, it will delay 1 second to control the power amplifier to turn on. Not only can it work with the mainframe, but also eliminate the impact of current. Model: TD - h201 TSK high turn low connection method: The connection is from left to right, white to left horn, black and white horn, gray to right horn, gray and right horn, pure black grounding wire, red connected to 12V power supply (parallel to 12V power line of bass artillery), blue connection control line REM. (REM connection post of bass gun) Product Weight : 90 G / 3.17 Ounces Product Dimensions (L*W*H) : 180*130*30 MM / 7.09*5.12*1.18 Inches Package Weight : 90 G / 3.17 Ounces Package Dimensions (L*W*H) : 180*130*30 MM / 7.09*5.12*1.18 Inches Retail Packaging: Yes, Blister Packaging Package Include: 1 x High to Low Frequency Converter

---
