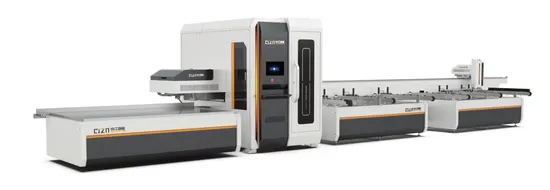

Aluminum Profile Intelligent CNC Sawing Processing Center Precision Aluminum Door and Window Cutting Machine

Product Description

Product Description
1,The CNC operating system can recognize material lists by scanning codes and can be connected to customer ERP software.
2,The automatic feeding workbench can continuously clamp profiles for cutting processing.
3,Automatically adjust the robotic arm position after changing profiles based on customer-established profile libraries.
4,The robotic arm movement uses imported high-precision gear racks to ensure feeding accuracy.
5,The mobile parts use high-precision linear guide pairs for smooth operation and processing accuracy.
6,Directly connect the saw blade with imported motors for smooth cutting and high processing accuracy.
7,Fully enclosed design of the shell ensures operator safety.
8,Cutting with pneumatic-hydraulic damping cylinder feed ensures stability.
9,Unique design allows for cutting of ultra-short materials at 180mm.
10,Fast short material cutting and quick positioning.
11,High-quality carbon structural steel welded frame: Stress relief treatment during hot aging, precision machining.
12,Guides: X, Y, Z axes all use high-precision linear guides (Taiwan HIWIN).
13,Drive system: Uses imported all-digital AC brushless servo drive system.
14,Mist cooling system: Can be used with processing programs.
15,Control box: All main electrical components, industrial computer, control system are all imported original.
Detailed Photos

Product Parameters

Input power supply:	380V/50Hz
Saw cutting motor power:	3×3.0kW
Feeding motor power:	0.55kW
Transfer discharge servo motor power:	0.75kW
Working air pressure:	0.6~ 0.8MPa
Saw blade specifications:	Ф500×Ф30×4.4×120T
Cutting profile height:	30~150mm
Cutting profile width:	30~150mm
Discharge length:	180~6,600mm
Saw cutting angle:	45°, 90°, -45°
Surface roughness:	Ra 6.3μm
Dimensions:	16,000×2,200×2,400mm
Weight:	Approximately 4,000kg

Company Profile
Shandong Chengjiang CNC Technology Co., Ltd is a premier manufacturer of high-end intelligent equipment, seamlessly integrating research, production, and sales. Our expertise lies in the innovative research, development, manufacturing, and sales of cutting-edge industrial aluminum processing equipment, alongside specialized aluminum door and window machinery, aluminum curtain wall systems, and plastic door and window solutions. Powered by an exceptional research and development team and a cadre of professional technical staff, we are committed to delivering superior quality equipment. Chengjiang is steadfast in its mission to pioneer the most advanced door, window, and curtain wall processing technology in China, setting new benchmarks in the industry.
Our Advantages
Shandong Chengjiang CNC Technology Co., Ltd. stands at the forefront of door and window processing equipment, perfectly blending industry expertise and trade acumen. Discover our unparalleled advantages:
1. Comprehensive Casting and Assembly Workshops with Customization Capabilities
At Shandong Chengjiang CNC Technology Co., Ltd., our end-to-end production line ensures seamless equipment processing. From raw material handling to meticulous polishing, casting, and painting, every step is executed in our state-of-the-art foundry workshop. Post-processing, parts transition seamlessly to our assembly workshop for precise assembly and thorough debugging. Boasting years of experience in door and window equipment processing, we excel in meeting diverse customization demands. Tailor your equipment to your exact specifications, including length, parameters, and color, ensuring a bespoke solution that perfectly aligns with your needs.
2. Cost Reduction, Efficiency Enhancement, and Quality Control
By integrating industry and trade, we streamline production and sales processes, optimizing our supply chain to significantly cut costs and boost efficiency. This synergy within our company ensures stringent quality control, guaranteeing that every product not only meets but exceeds industry standards.
3. Elite Technical R&D Team with Numerous Patents
Our elite technical R&D team, comprising over 10 dedicated professionals, is at the heart of our innovative prowess. Specializing in continuous product development and enhancement, our team holds multiple invention patents and possesses exclusive intellectual property rights. With over a decade of hands-on experience, our technical experts ensure that each product is crafted to perfection, maintaining rigorous quality standards at every stage of production and assembly.
After Sales Service
Pre-Sale Service
Get in touch with us to find the perfect machine for your needs, at no cost to you.
Enjoy bespoke professional designs tailored to each customer's unique requirements, free of charge. After Sale Service Receive round-the-clock technical support via phone, email, or Skype-whenever you need it, we're here for you.
Benefit from a 1-year warranty period, ensuring peace of mind and reliable operation.
Our expert senior engineer is ready to travel abroad to assist with installation, maintenance, and staff training, ensuring seamless operation and efficiency.
FAQ
1. Are your company a trading one or a factory?
We are an integrated entity combining both factory and trade, boasting 14 years of dedicated expertise in UPVC, Aluminum Window and Doors Equipment, as well as curtain wall equipment.
2. After an order is placed, when to deliver?
Generally, our delivery time is around 30 days. If we have items in inventory, we can expedite shipment within 10 days.
Please note that our production lead times are subject to specific items and quantities ordered.
3. What about the warranty with after-sales services?
We offer a comprehensive 12-month warranty. Beyond this, we are committed to assisting you with any issues at no additional cost.
Post-warranty, our professional after-sales service team will continue to provide exemplary technical support and resolve any problems customers encounter with our products. We pride ourselves on handling guest issues and complaints promptly and professionally.
4. What about the services and product quality?
Each machine undergoes a rigorous 100% quality examination and testing before shipment.
Moreover, all our machines are compliant with ISO and CE certifications.
5. We don't know how to operate the machine, what should we do?
We can dispatch an engineer to your location or provide detailed video training to demonstrate installation and operation. Additionally, our engineers are available for online support.

---
