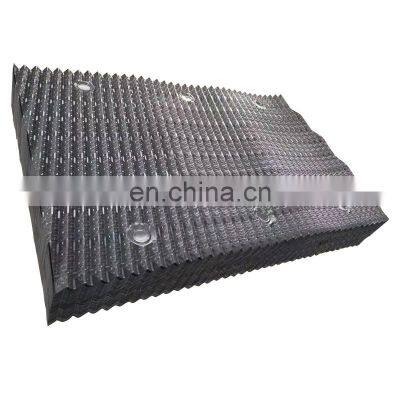

Product Descriptionwholesale counter flow PVC material DF254 cooling tower fillDF254 PVC fill is available worldwide for any counterflow cooling tower, regardless of a cooling tower’s age, design or manufacturer.• Bottom support low-clog log fill configuration• Open, angular cross-corrugations allow debris and biological growth foulant to pass, while providing maximum surface area and turbulence to develop efficient heat transfer• Texturing creates thermal capability improvement with little effect on fouling• Low pressure drop in an aerodynamic, durable design• Easily adapted to your tower’s configuration• May be installed in multiple layers to accommodate for various fill heights and/or desired duties• Thermoformed from .020" thick, UV inhibited, chemicallyresistant PVC (polyvinyl chloride)Specificationwholesale counter flow PVC material DF254 cooling tower fill Dimensions:Surface Area — 40 ft2/ft3Sheet Spacing — 1"Sheets per ft — 12Flute Angle — 11°PVC Sheet Thickness Before Forming—20 mils (.020")Dry Weight —1.75 lb/ft3ItemLengthWidthDepthStandard72"12"47.25"Minimum48"2"15.75"Maximum72"12"47.25"Packing & Deliverywholesale counter flow PVC material DF254 cooling tower fillWe always pack DF254 cooling tower fill on pallet with film wrap.Please note that this film has a good sun protection effect. As we know If PVC cooling tower fills are exposed to the sun, it will deform the filler. So it need protect the cooling tower fill.FAQWelcome to contact us for more information, we would give feedback within 24 hours.Please contact Cathy as following info.
>>
