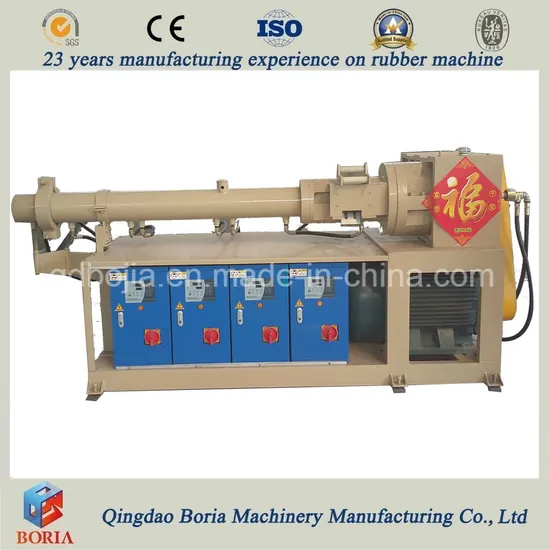

Rubber Round Rod Profile Extrusion Machine

Product Description

rubber round rod profile extrusion machine

I. Features of the machine
1. Rubber Cold Feed Extruder is used in production of band, strip and tubular shape of dense and foam rubber products which used in building, electrical, mechanical, water conservancy etc industry.
2. Production process: Raw materials - mixer - rubber mixing machine - extruder - vulcanizing box - cooling traction - packaging and storage.
3. Uniform vulcanization, quick vulcanizing speed, high efficiency, high product quality, low production costs, environmental protection and energy saving.
4. Automatic thermostat circulating vulcanizing box is the vulcanization device of rubber seals. Appearance requirements: Smooth and tidy.
II. Technical parameter

Technical Parameters	XJP-75DX20	XJP-90X20D	XJP-120X20D	XJP-150X20D
Screw Diameter(mm)	75	90	120	150
L : D	20:1	20:1	20:1	20:1
Screw Rotate Speed (r/min)	5-65	5-55	5-55	5-55
Max. Extruding Capacity (kg/h)	120	320	600	800
Main Motor Power(kw)	37	55	110	150
Speed Adjustment Mode	variable frequency speed regulation
Weight (kg)	1700	3200	5200	6500

III. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.

---
