China Ulirvision Advanced Thermal Imaging Binocular Wolf30|Wolf60 IP67

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
Wolf30|Wolf60
Type
Uncooled Fpa, Binocular
Magnification
10X
Function
Waterproof, Fogproof, Night Vision
Usage
Bird Watching/Hunting
Structure
Catadioptric Telescope
Lens Type
Zoom Lens
Encapsulation
IP67
Vibration& Shock
Mil-Std-810f
Storage Card
32g
Item
Wolf30|Wolf60
Specification
183mm*138mm*76mm(without eyepiece)
Trademark
ULIRVISION
Origin
China
Production Capacity
5000 Pieces/Years

Product Description

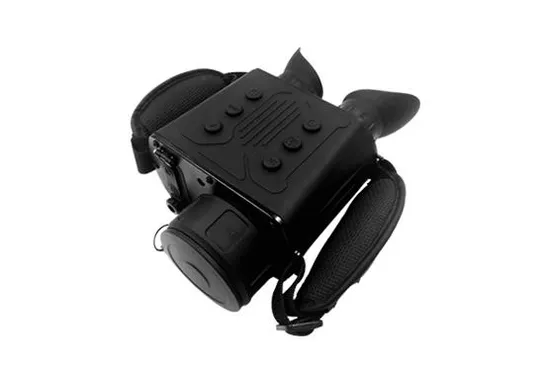

Product Description Wolf30|Wolf60 as high-quality thermal binoculars, can detect various targets in any harsh environment. They have been widely used in the night observation and surveillance.
Item Wolf30 Wolf60
Detector Data
Type Uncooled FPA
Material aSi
IR resolution 384×288 640×480
Pixel pitch 17μm
Spectral range 8~14μm
NETD/Sensitivity ≤70mK ≤60mK
Lens Data
Focal distance 50mm 75mm 50mm 75mm
FOV 7.5°×5.6° 5.0°×3.7° 12.4°×9.3° 8.3°×6.2°
Recognition distance(Vehicle) 1200m 1600m 1200m 1600m
Recognition distance(Human) 420m 600m 420m 600m
Eye relief 22mm
Diopter -5~+5
Image Performance
Display 800×600 binocular OLED 1024×768 binocular OLED
Polarity/LUT mode Black hot/White hot
Frequency 50Hz
Focus mode Manual
Noise reduction Digital filtering
Digital zoom 2X ,4X 2X, 4X
Image enhancement Manual
Startup time 4s
Contrast/Brightness Manual
Compass No Yes
Interfaces
Format Composite aviation plug
Power interface Yes
Video output PAL
Storage card 32G
Power System
Battery type 2pcs 18650 lithium batteries
Operation time ≥6h continuous(normal temperature) ≥4.5h continuous(normal temperature)
Environment Parameters
Operating temperature range -20ºC~+50ºC
Storage temperature range -45ºC~+70ºC
Encapsulation IP67
Vibration& Shock MIL-STD-810F
Physical Data
Size 183mm×138mm×76mm(without eyepiece) 195mm×140mm×90mm(without eyepiece)
Weight <1.2kg(50mm lens with battery) ≤1.3kg(75mm lens with battery)
Packing
Standard Thermal imaging binocular, 4pcs batteries, Charger, Composite output cable, Warranty card, User manual, Certificate, Transport case
