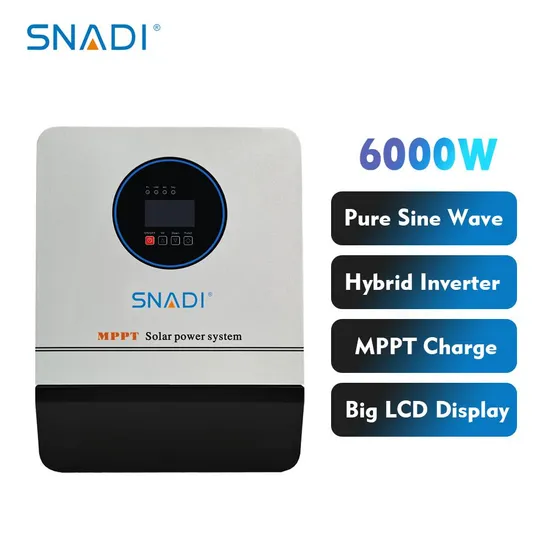

6000W DC AC off-Grid Hybrid MPPT Solar Inverter Inbuilt Toroidal Transformer

Product Description

Product Description1. MPPT hybrid solar inverter combined power inverter with MPPT solar controller, more efficient, simple installation;
2. Pure sine wave low frequency Power inverter with AC charger,low loss, with ups function, strong load capacity
3.Charging mode: Solar charging, The grid power charging optional
4. Working mode: the grid priority/energy saving mode/battery prioritycan be set flexibly
5.LCD display, diversify SettingsPure Sine Wave Inverter ---1KW-6KW
- A wide range of input voltage- Settable the mains mode - Controlled by intelligent fan- Pure sine wave AC output- LCD display- Automatic protectionProduct Parameters

NKM Series Hybrid Off-grid Hybrid Solar Inverter
Modle:NKM		0.3-1KW		1.5-6KW
Power Rating(w)		300	700	1500	3000	5000
		500	1000	2000	4000	6000
Battery	Rated Voltage(VDC)	12/24		12/24/48	24/48	48
	Charge Current	10A MAX		30A MAX
	Battery Type	Can be set
Input	Voltage Range	73-138VAC/145-275VAC		85-138VAC/170-275VAC
	Frequency	45-65Hz
Output	Voltage Range	110VAC/220VAC; +5%( Inverter mode)
	Frequency	50/60Hz±1%( Inverter mode)
	Output Wave	Pure Sine Wave
	Change Time	<10ms(Typical load)
	Frequency	>85%(80% Resistive load)
	Overcharge	110-120%/30S;>160%/300ms;
	Protecticn Function	Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protectior
Solar Controller	MPPT Voltage Range	12VDC:15V-150VDC;24VDC:30V-150VDC:48VDC:60V ~150VDC
	PV Power	12VDC-30A(400W);24VDC-30A(800W)		12VDC-60A(800W;24VDC-60A/1600W);48VDC-60A(3200W)
	Rated Charge Current	30A(Max)		60A(Max)
	MPPT Efficiency	≥99%
	Average Charging Voltage(lead acid battery)	12V/14.2VDC;24V/28.4VDC;48V/56.8VDC
	Floating Charge Voltage	12V/13.75VDC;24V/27.5VDC;48V/55VDC
	ControllerOperating Ambient Temperature	-15-+50°C
	Storage Ambient Temperature	-20-+50ºC
	Operating /storage Environment	0-90% No Condensation
	Dimensions:W*D*H (mm)	420*321*125		545*461*170
	Packing size: W*D*H (mm)	515*380*205		645*555*260
Note: Our company has the right of changing this user manual without any information

Main FeaturesExcellent performance with MCU intelligent control technologyWide range of applicable loads with pure sine wave AC outputConvenient 5VDC-USB output port and 12VDC output portSolar array and battery common-anode system inputCharge by mains supply for flexible configuration (optional)Overcharge and overdischarge protection for longer battery lifeDigital meter and LEDs for operation status visualizationAutomatic protection and alarms including AC output overload protectionProduct DescriptionWelcome to Foshan Snat Energy Electrical Technology Co., Ltd., where we offer top-quality solar power systems for residential, industrial, and commercial use. Our products are designed to meet your specific requirements, backed by our professional technology team with an average of 14 years of experience.
Key Features:
Minimum Order Quantity (MOQ): 1 unitManufacturer since 2004Delivery time: Within 15 daysQuality warranty: 1-2 years with free parts replacementWhether you need a solar power system for your home, business, or industrial facility, we have the expertise to provide you with a reliable and efficient solution. Contact us today to learn more about how we can meet your solar power needs.
FAQ1. How to insatll and use the product?
We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.2. What if I don't have export experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose the most suitable shipping service.3. How is your technical support?
We provide lifetime online support through Whatsapp/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.4. How can I make sure it's a secure transaction?
****** can protect buyers' interest, all of our transation will go through ****** platform.As you do the payment, the money will go directly to ****** bank account.After we send your the items and you comfirm the detailed information, ****** will release us the money.5. Can you get the product customized for us?
Of course, brand name, machine color, designed unique patterns available for customization.6. How to become your agent?
Contact us through Made-in-china, we will give you the best price and look forward to your greetings.

---
