Timken NSK NTN Koyo NACHI IKO Deep Groove Ball Bearing Taper Roller Bearing Spherical Roller Bearing Cylindrical Angular Contact Needle Bearing 21309 Bearing

Product Description

Product Description

Product Name	Spherical Roller Bearing Deep Groove Ball Bearing Tapered Roller Bearing Cylindrical Angular Contact Needle Bearing
Brand Name	TIMKEN NSK NTN Koyo NACHI IKO
Seals Type	OPEN/2Z/2RS/Z/RS
Material	Chrome Steel,Stainless steel, Ceramic,Nylon
Clearance	C0,C2,C3,C4,C5
Precision Grade	P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9)
Greece	SRL ,PS2, Alvania R12 ,etc
Number of Rows	Single Row
Certifications	ISO 9001
Package	Box, Carton, Wooden Box, Plastic Tube, or Per buyers requirement.
MOQ	2PCS
Service	OEM
Sample	Available
Payment Term	TT or L/C or Western Union
Port	Guangzhou/Qingdao/Shanghai

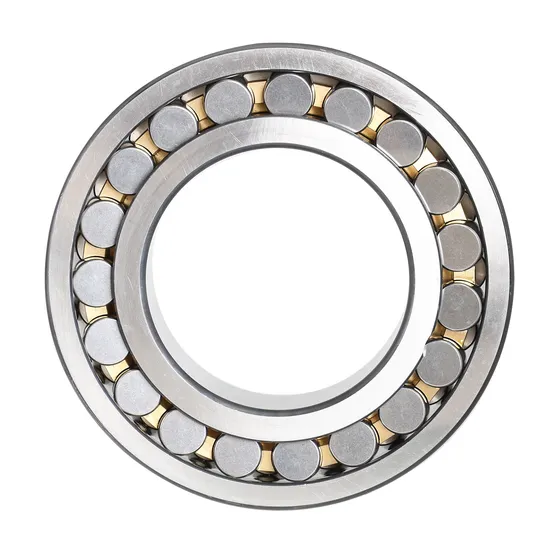

Self-aligning roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle error or shaft bending of the shaft and the bearing housing, and is suitable for installation errors or shaft deflection that cause angle errors. In addition to bearing radial loads, the bearing can also bear axial loads acting in both directions.
Spherical Roller bearings are designed to carry heavy loads, even under misalignment or shaft deflection. Spherical Roller bearings can also handle axial loading in either direction and heavy shock loads. Available with a cylindrical or a tapered bore for mounting with or without a sleeve adapter. Available with many internal clearance (C2 to C4) and retainer options. Available bore dimension range is 20mm to 900mm.
Spherical roller bearings are self-aligning bearings that are consequently insensitive to misalignment of the shaft, they have two rows of rollers so they are able to carry heavy radial loads, all sizes are available with cylindrical or tapered bores.
Spherical roller bearings are produced in several designs, depending on bearing series and size. The differences are
- the arrangement of the floating guide ring as well as
- the design of the inner ring and/or cages,
as described in the following.
C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring centred on the inner ring and reinforced roller complement.
CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centred on the inner ring
CAF-- As CA, but with a steel cage.
ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring centred on the inner ring.
ECAF-- As ECA, but with a steel cage.
E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring.
Double row spherical roller bearing for applications that support radial and oscillating axial loadsC4 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees FStraight bore for fitting to a conventional cylindrical shaftOuter ring-guided brass cage evenly spaces rollers for reduced friction, vibration, and noiseOpen design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place Packaging & Shipping
Certifications
FAQ
1 : Why choose us?
We have more than 20 years of professional experience in bearing industry .
We sell variety of bearing brands and can also do OEM and ODM.
2: How about the quality of products in your company?
We implement strict inspection on all bearing parts before the production and during the production process, all bearing meet ISO international standard.
3: How to choose a bearing?
We have a professional engineer team to help you choose bearing and find appropriate solutions, contact us now!
4: How long is your delivery term?
Our standard product delivery term is 0 to 15 days.
5: Do you provide samples?
Yes, we provide samples, but shipping cost and tax pay by buyer.

---
