3cavity 200ml Drink Bottle Automatic Blow/Blowing Moulding/Molding Machine

Product Description

Specification of 3cavity automatic blow moulding machine D-R603
https://chinadoria.en.made-in-china.com/product-list-1.html

No.	item	quantity	note
1	D-R603main frame	1 set
2	Conveyor system	1 set
3	High pressure air conpressor:1.2/30	1 set
4	Low pressure air compressor:1.0/10	1 set
5	Air dryer	1 set
6	Water chiller(5 HP)	1 set
7	Bottle mold( below 1L)	1 unit	As the drawing or sample provided by customer
8	Air receiving tank	1 set
8	T grade/C grade air filter	2pcs

1. D-R603 (3 cavities): technical data
1.1 Main machine dimension: L2100*W1700*H1680mm;
1.2, Theoretical output: 6L(1cavity): 550pcs/h; 2L: 2000pcs/h; 0.5L: 2500pcs/h; 0.1L: 3000pcs/h; (this is the perfect capacity, not accurate, and will be affected by many factors)
1.3, The frame of the machine adopts high quality steel 64# and A3 plate, the whole is in blue and nice in appearance
1.4, Stretch cylinder and main parts adopt "SMC" brand,
1.5, Adopts auto loader, main process is:
Auto resin loader - heat - blow -auto resin off
1.6, The revolving heating ensure the perform be heated evenly
1.7, PLC and the screen is Mitsubishi Brand
1.8 technical data of the main frame
1.8.1 Voltage of the main frame: 3P 380V/60HZ. (Adjust as the customer's request)
Power ration: 20KW; actual power: 10KW;
1.8.2, clamping force: 300KN
1.8.3, mould opening stretch: (adjustable) 180--260mm
1.8.4, max mold plate: L350*W520mm;
2. Auxiliary
2.1 high pressure air compressors VH-1.2/30:
2.1.1, packing dimension: 1600*850*1000mm;
Machine dimension: 1550*800*900mm;
2.1.2. Power of the motor: 7.5KW;
2.1.3, weight: 320KG;
2.1.4: capacity: 1.2M3/min;
2.1.5. Max pressure: 3.0MPa;
2.2, low pressure air compressorV-1.0/10
2.2.1, packing dimension: 1500*730*1200mm;
Machine dimension: 1465*680*1130mm;
2.2.2, power of the motor: 7.5KW;
2.2.3. Weight: 357KG;
2.2.4, capacity: 1.0M3/min;
2.2.5. Max pressure: 1.0MPa;
2.3.Air receiving tank0.6 m3/3.0MPa:
2.3.1. work pressure: 3.2MPa;
2.3.2, temperature: 100ºC;
2.3.3, volume: 0.6m3;
2.4, water chiller: 5HP
2.4.1. Packing dimension: 1100*600*1120mm;
2.4.2 Product dimension: 910*520*900mm
2.4.3. Power of the compressor: 3.15KW;
2.4.4. Weight: 130KG;
2.4.5 Cooler: R22;
2.4.6. Power of the pump: 0.5HP
2.4.7water flow: 2.2 m3/h
2.4.8, voltage: 380v--415v/3p/50Hz
2.5, Air dryer: OMK-1HNF
2.5.1. Dimension: 900*600*1100mm;
2.5.2. Capacity: 1.6m3 /min;
2.5.3. work pressure: 3.0MPa;
2.5.4. Temperature of the air in: 80ºC;
2.5.5. Temperature of the air out: 2-10ºC;
2.5.6, power of the compressor: 0.6KW
2.5.7, cooler: R22;
2.5.8, neck of the air connection tube: ZG3/4;
2.5, T grade/C grade precision air filter
2.6.1, capacity: 2Nm3/min;
2.6.2. Max working pressure: 3.0MPa;
2.6.3, temperature of the air intake≤50ºC;
2.6.4,T grade air filter accuracy≤3μm;
C grade air filter accuracy≤1μm;
2.6.5, weight: 2.3KG;

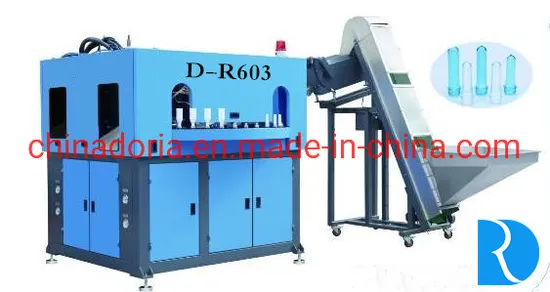

3. PICTURES OF D-R603
4. Frequently Asked Questions:
Q: Where is your loading port?
A: Ningbo/Shanghai, China or else port as for your request.
Q: Where is your company?
We are located in Taizhou city Zhejiang Province, very convenient for shipping.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q: Can you make bottle designs to us?
A: Yes. We have a professional team having rich experience on products designs. You could send bottle samples to us, and we could make designs according to the samples. Or you could send us the sketch of design, and we could make detail 3D designs to you to check.
Q: What is your selection of shipping method?
A: (1). For small trial order, international express, just as TNT, DHL, FedEx, UPS, EMS is suitable.
(2). For large order, we can arrange shipment by sea or air according to your requirement.
5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
