Safer Stainless Steel Constant Temperature Drinking Water Trough

Product Description

Product Description
The stainless steel electric heating water tank produced by the company has two models to choose from: 36V and 220V, as shown in the table below. At the same time, the company produces hot-dip galvanized drinking water tanks (Q235 material, non electric heating) for selection (parameters omitted).
1,Electric heating water tank(220v)
Specification 4000 * 500mm, capacity 300L, inner liner made of 304 stainless steel, outer liner made of 201 stainless steel, plate thickness 1.2mm, no control box, heating belt made of strip-shaped silicone plate, divided into 2 levels of heating, with characteristics of large contact surface, fast heating speed, and high thermal energy conversion efficiency. The device has a total power of 2000w and is equipped with leakage protection and grounding wire during installation, ensuring safe and reliable use.

component	Product photos	Parameter description	remarks
Stainless steel sink		Technical parameters: Material: 304 stainless steel plate, plate thickness ≥ 1.2mm. Length 4.0m, upper width 50cm, lower width 20cm; 30cm deep with drain hole. The horizontal bracket is welded with galvanized pipes and can be disassembled,	Ensure that 6 cows drink water at the same time, with one end of the sink receiving water at a flow rate of ≥ 120 liters/minute. A continuous crossbeam with a 70mm drainage hole is installed below the sink, with the drainage hole located at one end of the sink and installed with a slope.
Silicone heating strip		Electric heating with controllable temperature, using a silicone heating plate located on the outer side of the sink	Effectively ensuring uniform and rapid heating of the sink as a whole.
Customized liquid level controller for drinking water tank		Built in high-quality liquid level control valve, which can accurately control the liquid level height. The liquid level control valve has a one-year warranty and a service life of up to 3 years.	The built-in liquid level control valve can effectively prevent damage to the float valve caused by the large shaking of the water surface when cows drink and play in water.

2,Electric heating drinking water tank(36V)

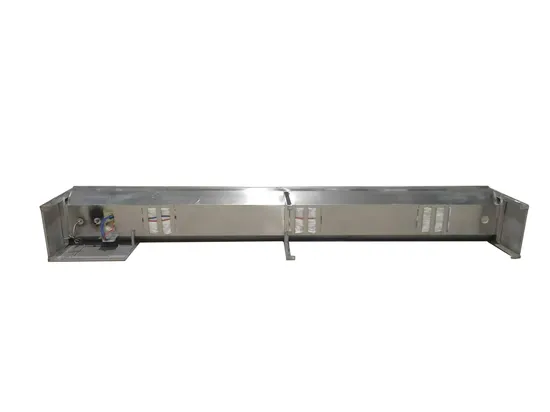

36V Electric heating drinking water tank
Specification 4000 * 500mm, capacity 300L, inner liner made of 304 stainless steel, outer liner made of 201 stainless steel, plate thickness 1.2mm. It is divided into two parts: the sink and the control box. The material of the control box is stainless steel. Using low-voltage heating technology, the voltage is converted from 220V to 36V and heated through three heating plates at the bottom, with a total power of 2400W.
Realistic picture	parameter	remarks
	Heating device: 3 bottom heating plates, total power 2400W, 36V; Has anti dry burning function;	The drain ball valve is not included in the warranty as a sink accessory.

Detailed Photos
Company Profile
Our company has been in business for more than 20 years and has extensive experience in dairy farm design. When you buy from us, you are not just buying a product but high-quality service.
FAQ
Q1. Are you a factory or trading company?
A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales.
Q2.May I visit your factory?
A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station.
Q3: Can you guarantee your quality?
A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.

---
