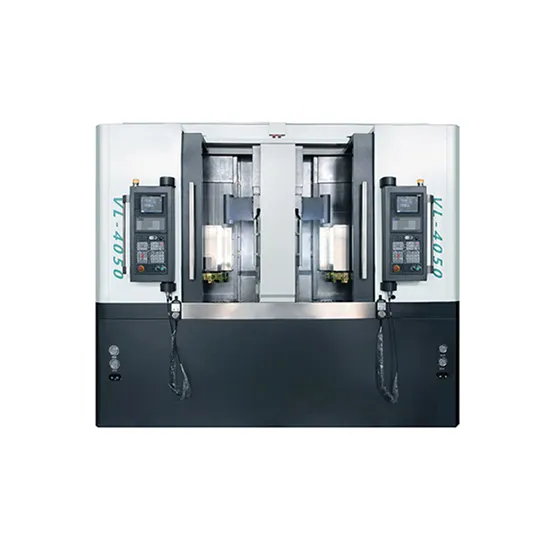

Rd-Vl4050 Single Spindle CNC Heavy Duty Vertical Lathe Machine

US$20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RD-VL4050
Type
Vertical Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Max. Swing Diameter
500
Max. Turning Diameter
400
Max. Turning Height
550
Spindle Speed
50-2500
Max. Spindle Torque
330
Transport Package
Wooden Case
Origin
China
Production Capacity
100

Product Description

ITEM UNIT RD-VL4050 RD-VL4050S
Max. swing diameter mm 500 500
Max. turning diameter mm 400 400
Max. turning height mm 550 650
Spindle nose A2-8 A2-6
Taper of tailstock sleeve - MT#4
Spindle speed r/min 50~2500 50~2500
Chuck diameter in 10 10
Max. spindle torque N.m 330 330
Max. loading capacity kg 800 500
Spindle motor power kw 22 22
CNC system FANUC/SIEMENS/KND/GSK FANUC/SIEMENS/KND/GSK
2 axis guide rail SRG35LR Extended slider 35 roller guide
2 axis lead screw DIK3210 3210
Tailstock guide rail - 25 roller guide
Tailstock lead screw - 2510
X/Z axis motor power kw 2.8/3.6 2.9/4.0/2.4
X/Z axis fast move speed m/min 20 26/26/15
X axis travel mm -30~+430 -30~+430
Z axis travel mm 500 600
X/Z axis positioning accuracy mm ±0.005 ±0.006
X/Z axis repeated positioning accuracy mm ±0.003 ±0.004
Turret tool number 10/12 10/12
Tool size O.D tool/Boring tool mm 25x25/40 25x25/40
Hydraulic control range MPa 0.1-6 0.1-6
Machining precision IT6~IT7 IT6~IT7
Surface roughness Ra1.6 Ra1.6
Stampings pump head/flow 34m/4m³/h 34m/4m³/h
Cooling pump head/flow 28m/4m³/h 28m/4m³/h
Chip conveyor Chain chip removal Chain chip removal
Working voltage Hz 380V±10% 50Hz 380V±10% 50Hz
Machine electrical capacity kVA 35 35kVA*2
Dimension mm 1500x2430x2700 3200x2480x2800
Machine tool protection Full protection Full protection
Weight kg 6000 10000
