Product Description
Product Description

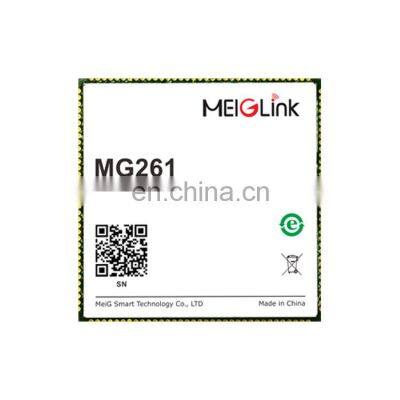

DescriptionProduct Description● MG261 is an AI module launched by MeiG Smart. It adopts HiSilicon chipset and embeds an AI software.● As an smart module dedicated to the IoT industry, MG261 integrates a new generation of ISP, adopts the latest H.265 video compression encoder, and integrates a high-performance NNIE engine, leading the industry in its low bit rate, high quality, intelligent processing and analysis, low power consumption, etc.● MG261 module has built-in DDR, EMMC with LCC packaging and provides multiple software and hardware interfaces, which greatly reduces the R&D costs of customers, and can be widely used in various industries such as security, vehicle and new retail.Main advantages:● integrated neural network acceleration engine, handling performance 1Tops● support for h. 265 codec● support dual 1080P@30FPS camera● built-in ISP supports WDR and supports 6-dof Support external 1080P display screen, and support HDMI output● support hardware AES/DES and other encryption Audio input/output support● support USB,SDIO3.0,RMII and other common interfaceBasic Attributes:Product model:MG261 ModulePackaging:LCC package (140pin+LGA 40pin)Size:38.0 * 38.0 * 3.0 mmWeight: < 8 gOperating system:Linux 4.9Video coding:H.264/265 codec maximum width 2688, maximum resolution 2688*1944, only support its own coding streamH.264/ h.265 multi-stream real-time coding (decoding) capability2688*1536@30fps code +720*480@30fps code +360*240@30fps code1920*1080@30fps encoding +720*480@30fps encoding +1920*1080@30fps decodingSupport for 8 areas of interest (ROI) codingAI functions:Integrated neural network acceleration engine, processing performance up to 1TopsIntegrated intelligent computing acceleration engine (including tracking and face correction)Integrated face recognition softwareModule Interface:LCD interface: MIPI_TX*1,HDMI*1Camera: MIPI_RX*2SDIO * 2UART * 2RMII*1, support 100Mbps network cardGPIO * 4USB2.0 * 1SPI * 1I2C * 3I2S * 1PCM * 1PWM * 2RTC * 1Dual channel audio output *1Double channel audio input *1Certification Information:CCC/ROHSBuilt-in Memory:Support DDR3, maximum capacity support 16GbitSupport SPI Nor Flash, maximum support 32MBSupport SPI NAND Flash, up to 4Gbit supportSupport for EMMC4.5, support for 4GB/8GB/16GB or greater storage spaceDrivers & Tools:Driver:Windows XP,Windows 7,Windows 8,Windows 8.1,Windows 10,Linux,AndroidTools:One-click upgrade toolFOTA upgradeVideo Interface:Support two MIPI interface inputThe first way supports the input maximum resolution of 2688*1944, and the second way supports the input maximum resolution of 2048*1536Support 4Lane Mipi interface video outputSupport HDMI 1.4 output (maximum resolution 1080p@60fps)Basic features:Operating temperature:- 20 ℃ to 70 ℃Storage temperature:- 45 ℃ to 90 ℃Humidity:5% ~ 95%The maximum power consumption is 2087mw, typical TBDUsage:Face recognition tabletFace payment terminalNew retail terminalThe robotSmart door lockAI cameraAI computing boxMG261 configuration information:MG261Storage:DDR3:1 gbEMMC: 8 gbFace recognition:supportSo:supportCamera:2USB mode:The HOSTWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
