US$4,800.00-8,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Cooling After Pelleting
Applicable Materials Shape
Granular
Temperature
Not Higher Than Room Temperature 3°c~5°c
Application
Cooling Wood Pellets and Animal Feeds
Transport Package
Wooden Package
Specification
About 12CBM
Production Capacity
20 Sets One Month
Packaging & Delivery
Package Size
300.00cm * 280.00cm * 450.00cm
Package Gross Weight
2000.000kg
Product Description
Product Description

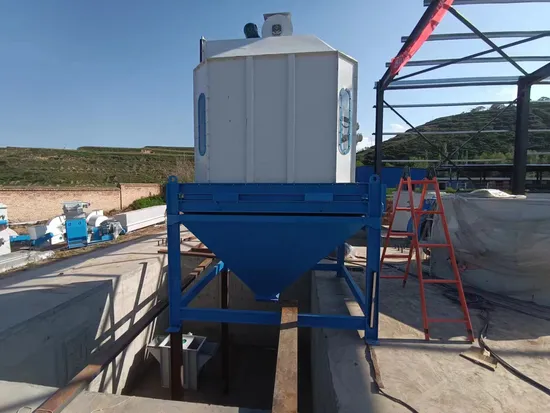

Cooler is mainly used for cooling of pellet feed in the feed pelleting section. It cools the pellet feed coming from pellet mill and with a temperature of 70°C~90°C to a temperature 3°C~5°C slightly higher than ambient temperature, and is capable of lowering to a safety moisture content. The cooled pellets not only improves in hardness but also can prevent from going mouldy, which facilitates the transportation and storage of pellet feed.
Our Advantages
1.Counterflow Cooler use countercurrent cooling principle to cool high temperature and high humidity particles, hot air and hot material contact, cold air and cold material contact, avoid cold air and hot material direct contact to produce sudden cooling resulting in particle surface cracking phenomenon;
2.Increase the cooling volume, extend the material cooling time, greatly improve the cooling effect;
3.The use of air closure feed, eliminate the inlet channeling phenomenon, cooling effect is good;
4.Adjustable conical bulk material mechanism, uniform cloth
5.The top of the cooler is made of stainless steel, strong corrosion resistance, long service life;
6.Slide valve type feed and discharge mechanism, smooth and reliable discharge;
7.Suitable for cooling of any granular material;
8.New cooling equipment integrating the most advanced international cooling technology;
9.After cooling, the particle temperature is not higher than room temperature 3°C~5°C, and the precipitation rate is not less than 3%~3.5%
Product Parameters
| Model | SKLN1.5 | SKLN2.5 | SKLN4 | SKLN5 | SKLN6 | SKLN8 |
| Parameters |
| Power (kw) | 1.1 | 1.1 | 2.2 | 2.2 | 2.2 | 3.2 |
| Capacity (t/h) | 3 | 5 | 8 | 12 | 15 | 20 |
| Cooling time (min) | Not less than 6~10 |
| Feed temperature after cooling | Not 3~5°C higher than ambient temperature |
