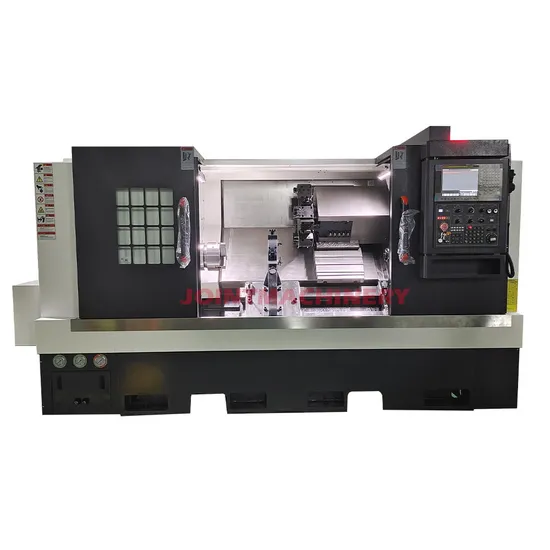

High Precision Taiwan Spindle Automatic Torno CNC Metal Turning Lathe

Product Description

This series of high-speed CNC lathes with inclined beds adopt imported or domestic high-performance CNC systems and their matching motors and drives to achieve two-axis linkage processing. Equipped with high-precision spindles, it has the characteristics of high precision, high speed, and stable operation. It can be equipped with hydraulic chucks and elastic collets, which can effectively save workpiece clamping time. Electric turrets, hydraulic turrets, and servo turrets can be selected. This machine tool is suitable for processing larger parts and realizing thread, circle, cone and other processing. It is widely used in the processing of rotating body products in the automotive industry, electronics industry, motorcycles, home appliances, furniture, lighting and other industries.
Spindle
Equipped with custom-made spindle with high productivity, high rigidity and high precision.
Cross Slide
Integrated screw bearing and integrated screw nut seat.
Bed Frame
Integral multi-cavity honeycomb bed.
High-Speed Indexing Turret
For the servo turret or servo power turret, we use a high-precision, high-rigidity brand, a high-precision three-tooth positioning structure, high-speed opening and closing, and the shortest path for tool change.Optional Y-axis power turrets or imported hydraulic turrets.
Tailstock
Tailstock-free integrated linear guideway tailstock.
High Precision Taiwan Spindle Automatic Torno CNC Metal Turning Lathe

Model		HTW-600/1050
Processing range	Max swing diameter over bed (mm)	Φ600
	Max processing diameter (mm)	Φ500
	Max processing diameter of carriage (mm)	Φ300
	Max processing length (mm)	1050
	Spindle/Chuck specifications	A2-8/10''
	Spindle through hole diameter/Bar diameter	Φ87/Φ75
Axis	X-axis travel (mm)	260
	Z-axis travel (mm)	1050
	X/Z rapid feed speed (m/min)	30/20
Tool magazine	Tool	100-12T
	Shank size (mm)	25*25/Φ40
Tailstock	Tailstock form	Sleeveless linear rail integral mobile type
	Taper (Mohs) / Travel (mm)	Mo5# / 1000
Appearance	Dimension (mm)	3600*1700*2000
	Weight (kg)	7100
Accuracy	Positioning accuracy (mm)	X≤0.005 Z≤0.008
	Repeat positioning accuracy (mm)	X≤0.003 Z≤0.005
Electric	Spindle motor rated power (kw)	15/18.5
	Spindle speed (rpm)	2500
	Control system	SYNTEC/GSK/KND

Standard Configuration:
HIWIN/PMI P- level matching guide rail, HIWIN/PMI C3 grade double nut screw, Imported servo or hydraulic turret, Taiwan spindle, Herg lubrication system, LX coolant system, Fully enclosed cover, C-axis function
Optional Configuration:
Chip conveyor, Auto doors, Fanuc/Mitsubishi/Siemens system, Tool setter, Ethernet functions
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
