China Wholesale Manufacturer R600A Lbp AC Refrigeration Compressor for Freezer

Product Description

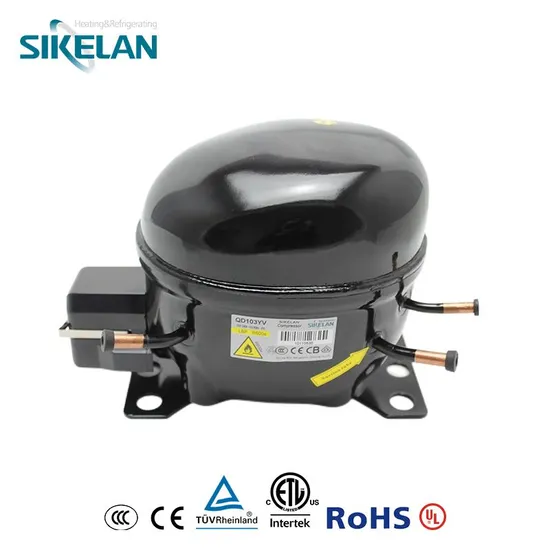

Product Description LBP-R600A(220V-240V~50-60HZ) HE High Efficiency Refrigeration Compressors
Adopting high-quality components, SIKELAN refrigeration compressors are always environmental friendly, high efficient, and widely praised by customers in the refrigeration industry due to its low noise, high performance, and long service life.
Features:
1. Low Noise: - There are two welding methods for the compressor casing: flange butt welding or insert welding. The thickness, shape, and internal cavity size of the shell have a significant impact on noise.
- There are two fixing methods for the movement: suspension spring type and seat spring type, with the seat spring compressor having less noise and vibration.
2. High Performance: - Equipped with professional valve components. The valve group is the heart of the compressor and plays a significant role in the performance of the compressor.
3. Long Service Life: - The crankshaft and connecting rod have good performance and are resistant to friction.
4. High Efficiency & Eco-friendly:
- As the power in a hermetic compressor, an electric motor converts electrical energy into mechanical energy, driving the piston to compress refrigerant vapor, enabling the refrigerant to circulate in the refrigeration system and achieve the purpose of refrigeration
Widely used for a variety of commercial/domestic freezers and refrigerators, like ice maker, beers coolers, merchandisers, water dispensers, dehumidifiers, etc.

Product Parameters Compressor Technical Data:
- R600a LBP 220-240V~50/60HZ HE

Serial	Model	HP	V/Hz	Displacement (cm3)	Cooling Capacity ASHRAE																						Motor type	Starting Device	Starting capacitor (uF)	Running capacitor (uF)	Cooling	Certificate
					-35ºC (-31F)		-30ºC(-22F)		-25ºC(-13F)		Test Conditions: -23.3ºC(-10F)						-20ºC(-4F)		-15ºC(5F)		-10ºC(10F)		-5ºC(23F)		0ºC(32F)
					W	Btu/h	W	Btu/h	W	Btu/h	Capacity (W)	Capacity (Btu/h)	lnput Power(W)	Current (A)	COP (W/W)	EER (Btu/Wh)	W	Btu/h	W	Btu/h	W	Btu/h	W	Btu/h	W	Btu/h
L	QD35YV	1/12	220-240V/50-60Hz	3.5	26	89	33	113	43	147	56	191	44	0.30	1.25	4.26	70	239	86	293	109	372	137	467	171	583	RSCR	PTC Starting Relay	/	3	ST	CCC CB CE
	QD43YV	1/11		4.3	34	116	44	150	58	198	75	256	57	0.32	1.30	4.43	94	321	117	399	147	502	183	624	229	781	RSCR		/	3	ST	CCC CB CE
	QD53YV	1/9		5.3	39	133	50	171	65	222	85	290	62	0.40	1.35	4.60	106	362	133	454	166	566	208	710	259	884	RSCR		/	3	ST	CCC CB CE
	QD65YV	1/7		6.5	50	171	65	222	85	290	110	375	78	0.45	1.40	4.77	138	471	172	587	215	734	269	918	336	1146	RSCR		/	3	ST	CCC CB CE
ML	QD69YV	1/7+		6.9	55	187	72.00	246	93	317	120	409	80	0.50	1.50	5.12	152	519	186	635	232	792	295	1007	365	1245	RSCR		/	3	ST	CCC CB CE
	QD75YV	1/6-		7.5	59	201	77	263	100	341	130	444	83	0.55	1.55	5.28	163	556	203	693	254	867	317	1082	397	1355	RSCR		/	4	ST	CCC CB CE
	QD85YV	1/6		8.5	66	225	86	293	112	382	145	495	90	0.60	1.60	5.46	181	618	227	775	283	966	354	1208	443	1512	RSCR		/	4	ST	CCC CB CE
	QD91YV	1/5		9.1	71	242	92	314	119	406	155	529	96	0.65	1.60	5.46	194	662	242	826	303	1034	378	1290	473	1614	RSCR		/	4	ST	CCC CB CE
MX	QD60YV	1/7-		6.0	46	157	60	205	78	266	105	358	57	0.34	1.75	5.97	122	416	156	532	235	802	248	846	310	1058	RSCR		/	3	ST	CCC CB CE
	QD65YV	1/7		6.5	50	171	65	222	85	290	110	375	62	0.36	1.75	5.97	138	471	172	587	215	734	269	918	336	1146	RSCR		/	3	ST	CCC CB CE
	QD75YV	1/6-		7.5	59	201	77	263	100	341	130	444	74	0.38	1.75	5.97	163	556	203	693	254	867	317	1082	397	1355	RSCR		/	3	ST	CCC CB CE
	QD85YV	1/6		8.5	66	225	86	293	112	382	145	495	82	0.40	1.75	5.97	181	618	227	775	283	966	354	1208	443	1512	RSCR		/	3	ST	CCC CB CE
	QD91YV	1/5		9.1	71	242	92	314	119	406	155	529	88	0.45	1.75	5.97	194	662	242	826	303	1034	378	1290	473	1614	RSCR		/	3	ST	CCC CB CE
	QD103YV	1/4-		10.3	77	263	99	338	130	444	168	573	96	0.48	1.75	5.97	210	717	263	897	328	1119	410	1399	513	1750	RSCR		/	3	ST	CCC CB CE
	QD110YV	1/4		11.0	84	287	109	372	142	485	185	631	105	0.52	1.75	5.97	231	788	289	986	361	1232	452	1542	565	1928	RSCR		/	3	ST	CCC CB CE
	QD128YV	1/3-		12.6	100	341	130	444	169	577	220	751	125	0.65	1.75	5.97	275	938	344	1174	430	1467	537	1832	671	2289	RSCR		/	3	ST	CCC CB CE
MQ	QD128YV	1/3-		12.8	100	341	130	444	169	577	220	751	129	0.70	1.70	5.80	275	938	344	1174	430	1467	537	1832	671	2289	RSCR		/	5	F	CCC CB CE
	QD142YV	1/3		14.2	109	372	142	485	185	631	240	819	141	0.75	1.70	5.80	300	1024	375	1280	469	1600	586	1999	732	2498	RSCR		/	5	F	CCC CB CE
	QD153YV	1/3+		15.3	118	403	154	525	200	682	260	887	152	0.80	1.70	5.80	325	1109	406	1385	508	1733	635	2167	794	2709	RSCR		/	5	F	CCC CB CE

- Ultra Efficient R600a LBP 220-240V~50/60HZ HE

Serial	Model	HP	V/Hz	Displacement (cm3)	Cooling Capacity ASHRAE																						Motor type	Starting Device	Starting capacitor (uF)	Running capacitor (uF)	Cooling	Certificate
					-35ºC (-31F)		-30ºC(-22F)		-25ºC(-13F)		Test Conditions: -23.3ºC(-10F)						-20ºC(-4F)		-15ºC(5F)		-10ºC(10F)		-5ºC(23F)		0ºC(32F)
					W	Btu/h	W	Btu/h	W	Btu/h	Capacity (W)	Capacity (Btu/h)	lnput Power(W)	Current (A)	COP (W/W)	EER (Btu/Wh)	W	Btu/h	W	Btu/h	W	Btu/h	W	Btu/h	W	Btu/h
MX	QD53YVV	1/9	220-240V/50-60Hz	5.3	39	133	50	171	65	222	88	300	48	0.32	1.80	6.14	106	362	133	454	166	566	208	710	259	884	RSCR	EPTC Starting Relay	/	3	ST	CCC CB CE
	QD60YVV	1/8		6.0	59	201	77	263	100	341	100	341	55	0.34	1.80	6.14	163	556	203	693	254	867	317	1082	397	1355	RSCR		/	3	ST	CCC CB CE
	QD65YVV	1/7		6.5	50	171	65	222	85	290	110	375	61	0.36	1.80	6.14	138	471	172	587	215	734	269	918	336	1146	RSCR		/	3	ST	CCC CB CE
	QD69YVV	1/7+		6.9	55	187	72	246	93	317	118	403	65	0.38	1.80	6.14	152	519	186	635	232	792	295	1007	365	1245	RSCR		/	4	ST	CCC CB CE
	QD75YVV	1/6-		7.5	59	201	77	263	100	341	125	427	70	0.42	1.80	6.14	163	556	203	693	254	867	317	1082	397	1355	RSCR		/	4	ST	CCC CB CE
	QD85YVV	1/6		8.5	66	225	86	293	112	382	145	495	80	0.46	1.80	6.14	181	618	227	775	283	966	354	1208	443	1512	RSCR		/	4	ST	CCC CB CE
	QD91YVV	1/5		9.1	71	242	92	314	119	406	155	529	86	0.52	1.80	6.14	194	662	242	826	303	1034	378	1290	473	1614	RSCR		/	4	ST	CCC CB CE
	QD103YVV	1/4-		10.3	77	263	99	338	130	444	168	573	93	0.58	1.80	6.14	210	717	263	897	328	1119	410	1399	513	1750	RSCR		/	4	ST	CCC CB CE
	QD110YVV	1/4		11.0	84	287	109	372	142	485	185	631	102	0.62	1.80	6.14	231	788	289	986	361	1232	452	1542	565	1928	RSCR		/	4	F	CCC CB CE
	QD128YVV	1/3-		12.6	100	341	130	444	169	577	215	734	122	0.65	1.80	6.14	275	938	344	1174	430	1467	537	1832	671	2289	RSCR		/	4	F	CCC CB CE

→ More Compressor Please Click to Contact Us! Company Profile

Certifications With abundant technique force,we have our own researching, developing, manufacturing, inspecting and testingcenters, and imported the international advanced high-tech equipments. Our company has passed the ISO9001,ISO14001,OHS18001 international management system certificates. The products have got UL,ETL,CE,CB,and CCC certificates. Our products are not only selling strongly in more than 30 provincesand municipality,but also largely exporting to Europe,America,Australia,Middle East, Africa and South Asia. We have won an excellent reputation from the customers and friends by our product quality,price versus performance ratio and service.
FAQ Q1: Are you a manufacturer or trader?
A1: Zhejiang Maidi Refrigeration Technology Co., Ltd. is a Hi-tech enterprise. We own the standard plant and office building which covering 21, 000 square meters. With abundant technique force, we have our own researching, developing, manufacturing, inspecting and testing centers, and imported the international advanced equipments.
Q2: How to match sikelan compressor to refrigeration?
A2: We have a professional team of engineers who provide technical support and online guidance on product installation and replacement.
Q3: How do you ensure quality?
A3: We have a dedicated product research and testing center with authoritative quality management system certification: ISO9001/ISO14001/OHS18001.
Q4:What's sikelan compressor usage scenario?
Q4:Our product could use in mobile applications e.g. cooling boxes,vans,boats, etc,water dispensers, minibar, refrigerators,freezer, ice maker, beers coolers, merchandisers, dehumidifier, refrigerated islands and kitchen freezers.
Q5: How much does a refrigeration part cost?
A5: Factory price for you, not cheapest but the competitive price with good quality.
Q6:What's voltage sikelan compressor available?
Q6:We have 220-240v and 110-120v for 50hz-60hz in AC compressor. And we have 12/24v/48v in DC Compressors. Depend on customer requirements.
Q7:What certifications do sikelan have?
A7:We have UL, CCC, CE, CB, ETL, TUV, RoHS certifications in compressor.
Q8:What's our sikelan competitive advantages?
A8:a)More compressor model-----We have DC compressor, AC compressor and frequency conversion series compressor.
b)Lower noisy about compressor
c)Stable quality-----Coming from good material and technology.
d)Good service -----Satisfaction service before and after sale.

---
