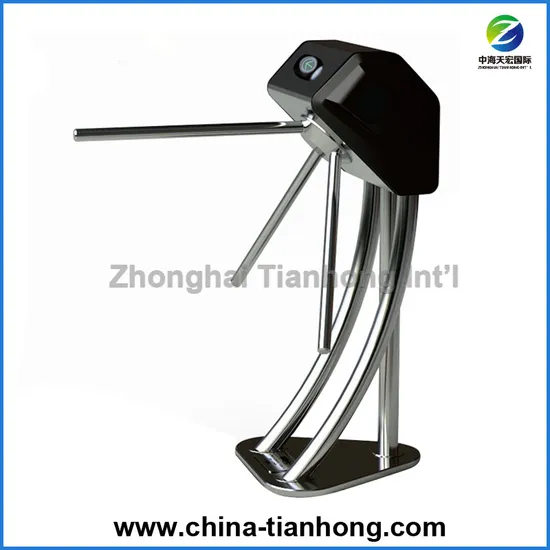

Metro Station Tripod Turnstile (TH-TT608)

Product Description

Features:
1) DC electronic motor drive, photoelectric sensor
2) Configuration: Mechanism, Housing, Control board and Power supply
3) Operation Direction: Single/bi-direction
4) Structure: Frame structure/stainless steel/cold sheet metal with paint
5) Positive action to prevent two passengers at one time.
6) 3*120 degree stop
7) Individual installation interface, easy to integrate with Magnetic card, Barcode, ID card, IC card etc.
8) Access freely when the electricity is off, but arms won't drop down
9) Stand alone or connect to the internet.
10) Maintenance Port: 2
11) Service Life: Ten years (non-consumable)
12) Anti-reverse: Have anti-reverse function in order to ensure one card for one person
13) Temperature:-10ºC~60ºC
14) Power:AC220V±10% 50Hz±4%
15) Humidity:5%~95%
16) Output:DC24V,DC5V
17) Speed:≤25 people/minute
18) Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W
19) Noise:<50dB
20) Lane Width: 550~570mm
21) Interface Parameter: One RS232 interface, two card reader signals (Passive), one fire alarm interface.
22) Dimension: L*W*H: 767L x 415W x 1050Hmm
23) Protection property: IP42 for indoor
24) NET weight: 100KG
25) Package: Wooden case

---
