Vmc1370 5-Axis CNC Vertical Machinimetalnter Vmc1370 Spindle Taper Bt50 China 11 New Product 2024 CNC Milling Machine 3 Axis Single 0.03

Product Description

Product Description
The worktable size of this machine is 800*1700. The overall rigidity of the fuselage is excellent, the structure is reasonable and the rigidity is extremely high. All the castings of this machine have been secondary tempered to provice high stability and high rigidity for overall machine. The maximum load bearing capability is also very excellent, it is up to 1500kg. This machine equips a high performance and high precision spindle. The speed range of the spindle is 8000RPM and the maximum cutting feed speed is from 1 till 10000RPM. The rigidity of the spindle is good. The materials of the spindle can absorb vibration which can effectively avoid accuracy problems.

Main Features:
High speed and precision spindle Overl rigidity of the machine is excellent The worktable size is good: 800mm*1700mm Maximum laod bearing capability: 1500kg The stability of the machine is good Low noise

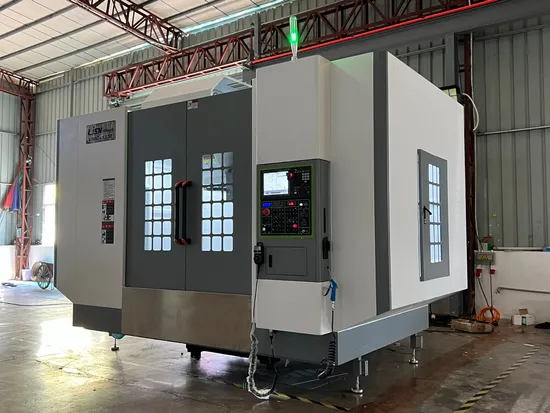

Detailed Photos

Product Parameters

Item	Specifications	MODELS→	VMC1370	VMC1580
Travel Range	X/Y/Z Axis Travel	mm	1300/700/750	1500/800/750
	Distance From Spindle Nose To worktable	mm	150-800	170-780
Worktable	Worktable (WidthxLength)	mm	700x1400	800x1700
	Max Load Bearing Of Worktable	kg	900	1500
	T-Slot(number of SlotxSlot WidthxPitch)	mm	5x18x152.5	5x18x145
Spindle	Spindle Hole Taper	type	BT50	BT50
	Spindle Speed Range	r/min	8000	8000
Feedrate	X/Y/Z Rapid Feed Speed	m/min	20/20/20	12/12/12
Accuracy	X/Y/Z Position Accuracy	mm	0.005	0.005
Machine Dimension	Machine Dimension	mm	2800x3800x2900	4110x2740x2900
	Machine Weight	kg	9000	12800

Standard Configuration for VMC Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindle air curtain and dust control system
9. 10000 RPM spindle
10.Worktable cleaning water gun
Optional Configuration for VMC Series 1. 24 disc manipulator tool magazine
2. Crawler chips remover
3. NC rotary table (4 Axis)
4. CTS
5. Tool detection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
