Double Wheels Wet Pan Clay Grinding Mill Machine Soil Bricks Making Machine

Product Description

Product Description

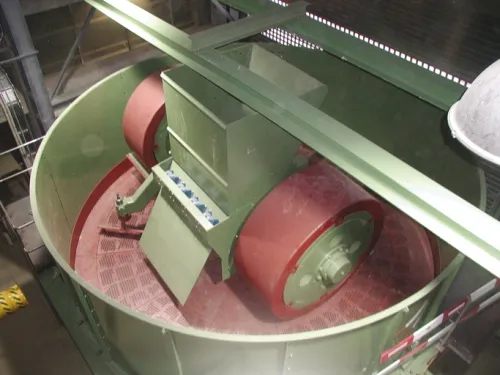

Double Wheel Wet Pan Mill
The wet pan mill is a heavily built machine, based on the principle of two big grinding wheels which turn on an anti-wear manganese steel grid.The dimensions of the holes is chosen according to the needs, thus obtaining, on the raw material, a series of working effects that generally are obtained only with the use of several machines: crushing of hard and schistose clay, under the weight of the grinding wheels, mixing of various clay by means of easily adjustable scrapers amalgamation and mixing of the clay with the addition of water.The grinding wheels have rings made of manganese steel easily adjustable. The refined clay is transported by means of two belt conveyors in PVC placed under the grids.
FEATURES AT A GLANCE
European standards&reasonable structure
This serious of machines adopt the latest manufacturing technology from Europe. Self-supporting base structure made in two parts compatible with large belt.Large Grinding area divided into two tracks provide high output.Central material feeding on the inner grinding track by two feeders.
Easy Installation
Easily removable wearing frames between grinding plates and base structure.
Large centre section with easily removable runners
Flexibility
Vary wheel diameter enable the machine to work with different sizes clay.
Product Parameters

Description	Unit	Model Number
		MP165	MP180	MP200
Wheel Diameter	mm	1600	1850	900
Wheel Width	mm	500	700	700
Installation Power	kw	45+2×2.2+1.1	90+2×3+1.1	132+2×4+1.1
Wheel Pececs	pce	2	2	2
Inner/Outer Wheel weight	kg	5700/6500	8500/11000	12000/15000
Weright(Including metor)	kg	52000	56000	70000
Diamensions	m	4×4×6.2	5.3×4.6×6.5	5.5×4.7×6.7
