Product Description
Product Description

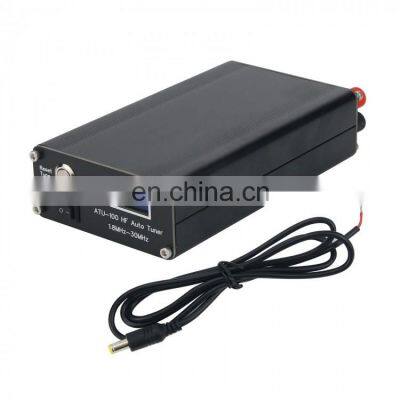

ATU-100 1.8MHz-30MHz Open Source N7DDC Amateur Radio Communications HF Automatic Antenna Tuner Product Description Attention:The core design information of this antenna tuner comes from its original author N7DDC's automatic antenna tuning open source project.Description:The finished kit is purely hand-soldered, providing 3.1 program support with SSD1306 controller, resolution of 128x32 pixels, diagonal 0.91" monochrome OLED display. This circuit contains a set of 7 inductors and 7 capacitors, which allows it to work in a wider frequency range, which can effectively cover the amateur radio range from 1.8MHz to 30MHz.Technical Characteristics (basic model):- Allowable supply voltage range: 10-15VDC- Maximum current consumption: 400 mA- Maximum working power: 100W- Maximum possible measurement power: 150W- Minimum power required to start tuning: 5W- The smallest possible measurement power: 0.1W- Measurement resolution for power up to 10 watt-hours: 0.1W- Measurement resolution for power greater than 10 watts: 1W- Power measurement accuracy error: ±10%- Maximum installation inductance: 8.53H inductance- Minimum installation step distance: 0.05H- Maximum installed capacity: 1869pF- Minimum capacitance installation steps: 10pF- Typical consumption 100-200 mAPackage Included:- 1 x Set of HF Automatic Antenna TunerNote:- It is assembled and ready to use.- At present, optional functions include 1-5w start and adjust, 10 seconds screen self-extinguishing/constant light, automatic/manual mode, etc. Please leave a message for optional functions. The default is 5w start and adjust, the screen is always on, manual mode.- Battery is not included.Operation Instructions:Connect the DC socket to a power supply DC 10-15V (inner +, outer -), the panel Power button is in the on position, set radio power to 5W-10W, press and hold Reset/Tune button, screen displays TUNE. At this time, the transmitter transmits continuous power, and the antenna tuner can be adjusted automatically. Short press the Reset/Tune button, the antenna tuner releases the previously adjusted LC relay, which is in the through position.In consideration of environmental protection and energy saving, this antenna tuner can sleep on the screen after 10 seconds of no action and no emission. If you need this feature, you can contact customer service to change it before placing the order. At present, the antenna tuner works in manual mode, that is, the relay will adjust after long pressing the Reset/Tune button. The antenna tuner can also work in fully automatic mode without pressing a button. After the system detects that the standing wave ratio is greater than 1.3:1 (this value can be adjusted), it will automatically start to adjust. If you need this working mode, please contact us before shipping.The black and red binding posts are experimentally used for the adjustment of long-wire antennas.The Ver1.21 version adds SX1308 boost circuit (this part of the component needs to be purchased separately by buyers) in the spare position of the motherboard, and power supply modes can be switched through the reserved SMT pad. And add a fully automatic mode interface to the motherboard to facilitate DIY. Attention: Due to the noise interference that may be generated after adding this DC-DC boost circuit, it is not used as a basis for product quality problems.SX1308 is a fixed frequency, SOT23-6 enclosed current mode boost converter. The operating frequency of up to 1.2MHz allows the peripheral inductors and capacitors to choose smaller specifications. Built-in soft-start function reduces the start-up inrush current. The internal integrated 80 milliohm power MOSFET, the highest boost efficiency can reach 97%. Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
