US$1,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Name
Freeze Drying Machine
Shelf Dimensions
375-800mm
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Home
Core Components
Control System ,Refrigeration System, Vacuum
Handling Capacity
20kg/Batch
Key Selling Points
Automatic,Economy, Reliability
Transport Package
Wooden Case
Production Capacity
100 Sets/Month
Product Description
General Introduction :
Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After freeze drying process, a long term preservation for material is much easier. They can be restored to original state and maintain their chemical and biological characteristics after being watered. The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture under vacuum state.

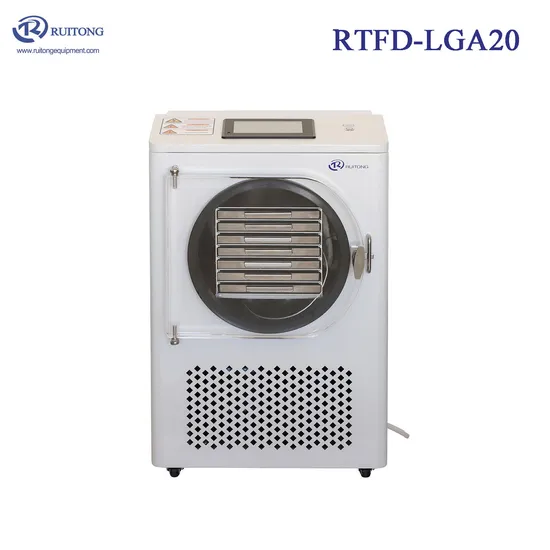

RTFD-LGA freeze dryer is used for Meats/Fish
Milk/Avocado/Sakya/Pitaya/Jackfruit/Rambutan /Mangosteen/Passion fruit/Mango/Pineapple/Kiwi fruit/Watermelon/Banana/Papaya/Coconut meat/Coconutmilk/Durian/Strawberry/Blueberry/Raspberry/Apple/Lemon/Apricot/Maqui/Herbal/Rose/Tomato/Spinach/Sweet/corn/Carrot/Mushroom
/Aloe vera/Purple potato/Cooked meal/Noodle
Technical parameters
Technical Parameters | Unit | LGA01 | LGA03 | LGA06 | LGA10 | LGA15 | LGA20 |
| Drying area | m2 | 0.1 | 0.4 | 0.6 | 0.96 | 1.5 | 2.1 |
| Shelf number | layer | 3 | 5 | 5 | 4 | 5 | 7 |
| Shelf spacing | mm | 40 | 37 | 40 | 50 | 40 | 40 |
| Shelf size | mm | 140*280 | 225*380 | 300*400 | 300*830 | 375*800 | 375*800 |
Bulk capacity (10 mm thick) | Liter | 2 | 4 | 6 | 10 | 15 | 20 |
Condenser capability | kg/batch | 2 | ≥5 | ≥10 | ≥15 | ≥23 | ≥30 |
Shelf temperature control range | ºC | -30~+80 | -30~+80 | -30~+80 | -30~+80 | -30~+80 | -30~+80 |
| Vacuum degree | Pa | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
| Condenser temp. | ºC | ≤-35/-40/-50 |
| Cooling method | - | Air cooling, ambient temperature below 25 ºC |
Defrosting type | - | Electric heating defrosting |
| Installed power | kw | 1 | 1.5 | 3.5 | 4.5 | 4.5 | 6 |
| Dimension L*W*H | mm | 575*370*565 | 600*450*800 | 900*800*1300 | 900*800*1300 | 1300*800*1500 | 1300*800*1500 |
| Weight | kg | 60 | 90 | 160 | 180 | 240 | 300 |
Detailed Photos
Packaging & Shipping
