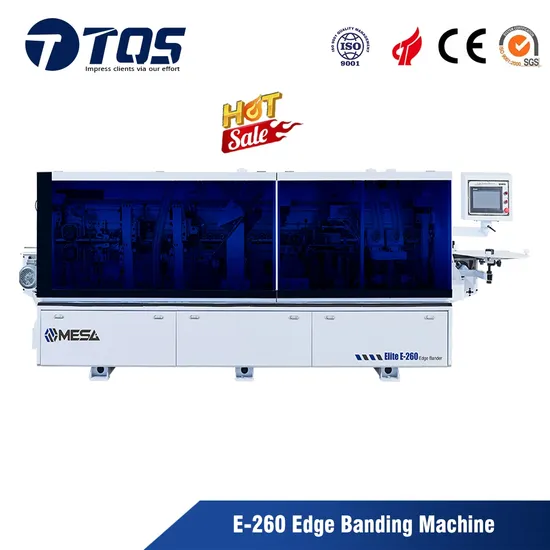

High Speed E-260 Furniture Edge Bander PVC MDF Wood Edge Banding Machine

Product Description

Model	E-260
Board length	≥150mm	Input voltage	380v
Board width	≥60mm	Input frequency	50HZ
Board thickness	10~60mm	Output frequency	200HZ
Tape width	12~65mm	Total motor power	10.35Kw
Tape thickness	0.4~3mm	Air pressure	0.6pa
Feeding speed	16~23m/min	Phase	3
Workbench height	900mm	Dust exhaust hole	100mm×4
Dimension	5450*680*1235mm	Weight	1250kg

Machine Body 1.Machine body has been solid welded by the laser cutting steel, and did the heat treatment, to ensure the structure stability. 2.Main beam adopts Aluminum profile structure with electrical elevating, which is uniform and rigid.

Control Panel Adopts 7 inch touch screen, which integrated the following functions: Function control Beam elevating Parameter setting Temperature controller Alarm details

Separating Spray Before the pre milling function, the machine equipped with one separating spray device, which will isolate the dust and adhesive on the board surface, which will be easy to remove them.

Pre-milling Structure 1.Two pieces 2.2KW high speed motor, to do the joint trimming before the gluing, to reduce the adhesive mark on the edge. 2.Through adjusting the feeding fence position, we can adjust the milling amount. 3.Two pieces PCD cutter:φ125mm x φ30mm x H35mm 4.Come with dust blower deviceWith individual dust exhausting hood

Glue Pot Structure The machine underneath glue pot, adopts screw type extracting structure. The amount of adhesive is adjusted via pneumatic cylinder.

End Cutting Unit 1.Two pieces 0.37kw high speed motor with 200Hz frequency and 12000rpm rotation speed 2.The motor come with manual rotating device, which can adjust the angle easily. 3.Saw blades size:104*2.6*22*24Z

Fine Trimming Unit 1.Two pieces 0.75kw high speed motor with 200Hz frequency and 12000rpm rotation speed 2.Motor angle is adjustable With individual dust exhausting hoods

Scraping Unit 1.Scraping cutter with R2 radius 2.With the air blower device

Cleaning Spray Device With the special cleaning agent spray device, which can help the buffing unit to clean the leaking adhesive on the board surface.

Buffing Unit 1.Considering the dual-glue pots structure, the machine comes with double buffing unit, to meet the different color polishing. 2.Can do the board edge polishing, and remove the leaking adhesive mark on the surface.

Automatic Lubrication Pump Which will do the automatic lubrication to the linear guide way on the end cutting unit, to extend the using life of the structure.

Low-voltage apparatus 1.Input power: 3~380v,50hz 2.Circuit brake, 24V power supplier and AC contactor are from Schneider France. 3.Delta PLC is from Taiwan. 4.Brand parts will ensure the safety and stability of the control system.

The latest appearance design of the edge bander. Also can do the OEM for your side.

10inch Touch Screen Adopts 10 inch touch screen, which integrated the following functions: Function control Parameter setting Temperature controller Alarm details

Vertical glue pot The machine adopts vertical glue pot, which can process the adhesive like EVA and PUR. 1.The glue pot come with two pieces individual glue buckets. 2.With quick changing design, to enhance the working efficiency.

E-350PC Edge Bander Machine

E-240 Edge Bander Machine

1. What's your guarantee? Which type after sale service can you provide to us?All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently. After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
