Hot Sale Efficient Building Elevator Construction Hoist Materials Lift Personnel Cargo Lift

Product Description

Hot sale Efficient Building Construction Materials Lift Cargo lift
Welcome agent or distributor all over the world with most attractive profit and long last cooperation partnership.
1.Description

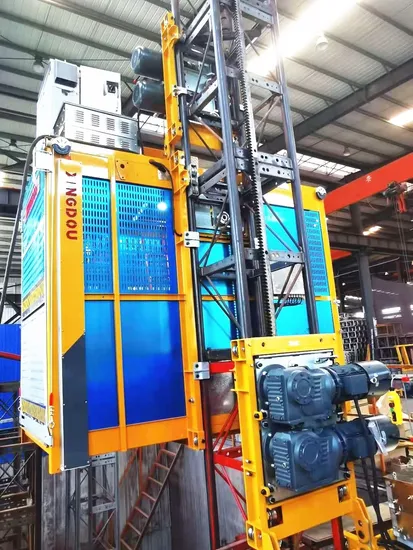

Construction hoist is also called building construction elevator, outdoor elevator, building lifts. It is widely used as construction machinery to lift people and building materials.SC series Construction Hoist/Elevators adopts rack-and-pinion transmission. the equipment is applicable to people and material transporting in high building construction that above 60m, such as bridges, chimneys, mansions, etc.. And can also be used in warehouse , wharf, etc for vertical transportation 2.Technical Specification

Characteristic		Model	Rated Loading	Lifting Speed	Motor Power
Double cages		SC200/200	2x2000kg	33m/min	2x(3x11kw) / 2x(3x8.5kw)
		SC150/150	2x1500kg	33m/min	2x(2x13kw)
		SC100/100	2x1000kg	33m/min	2x(2x11kw)
Single cage		SC200	2000kg	33m/min	3x11kw /3x8.5kw
		SC150	1500kg	33m/min	2x13kw
		SC100	1000kg	33m/min	2x11kw
Double cages	Low speed	SC200/200D	2X2000kg	0-40m/min	2x(3x11kw)/2x(3x8.5kw)
		SC100/100D	2x1000kg	0-40m/min	2x(2x13kw)
	Mid speed	SC200/200Z	2x2000kg	0-60m/min	2x(2x23kw)
		SC100/100Z	2x1000kg	0-60m/min	2x(2x15kw)
Single cage	Low speed	SC200D	2000kg	0-40m/min	3x11kw /3x8.5kw
		SC100D	1000kg	0-40m/min	2x13kw
	Mid speed	SC200Z	2000kg	0-60m/min	2x23kw
		SC100Z	1000kg	0-60m/min	2x15kw

3.Product Description
Prominent Features of Construction Lift
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of
surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched
aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Transmission mechanism supplied by the professional manufacturer has high efficiency, long
service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices
ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive
downward movement of the cage, preventing and eliminating accidents.
6. Frequency conversional construction elevator is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.
The Mast section(color is variable) is made of seamless pipe.
(The high quality seamless steel pipe is good verticality, anti-pressure, anti-aging, thickness and so on) Completed safety measures
1. Equiping with Anti-falling govenor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit swithes, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Frequecy Conversion (Inverter) can be choose
8. PLC Control system can be choose
9. Level Calling system and Auto leveling device to be choose
4. Factory and Manufacturing Line
6. Shipping and Loading
7.FAQ
1. What are your main products?
We produce construction hoist (also called construction elevator, construction lift) and spare parts of it.
2. Are all construction hoists the same from all Vendors & Manufacturers?
Our construction hoist has been improved better than some others. Firstly, the mast section stulls are changed to U-shape structure, the diagonal bracing adopt solid round steel instead of hollow. So the mast section becomes more stable than the old type. Secondly, in the configuration, we adopt famous brand motor special supply for XINGDOU, electric and Huaye Rongcheng brand gear reducer.
3. Do your products have some certificates?
Yes. Our products have CE, ISO and BV Certificates.
4. What are the payment terms and the delivery time?
Payment terms are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you manufacturer or the trader?
We are manufacturer,have our own factory and Research and development team.
6. Will you develop distributor and sole agent?
Yes, should you have any interest to be our distributor and agent, please let us know in any ways. Sole agent is available depend on the sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping to countries all over the world from Qingdao port.
We have done business with customers in many countries, such as Brazil, Korea, Malaysia, Thailand, India, Vietnam, and Indonesia etc.
8.Quotation request:
If you are interested in our products, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
3) Local power supply (kV, Hz)
4) Other special equipments
We will provide best price once confirmed the above. You can get high quality products and professional service from us.
Any question from you is welcome and will get reply within 24 hours. We are specialized in anufacture and offer the optimal solution for vertical transport in applications such as: Cement Plants, Power Plants, Building Construction and Bridge Construction among others.

---
