300V/500V Silicone Rubber Fiberglass Wire (VDE H05SJ-K)

Product Description

Product Description

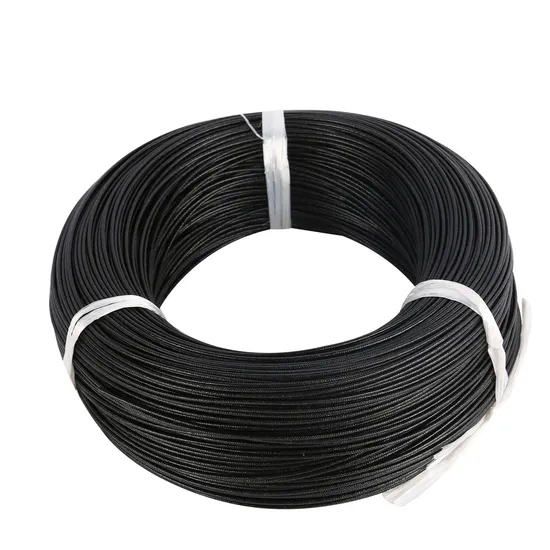

VDE H05SJ-K silicone rubber insulated and fiberglass braided wire

Nominal Voltage : 300V/500V
Temperature Range :-60ºC~+180ºC
Testing Voltage :2000V
Conductor : Bare or Tinned Copper
Insulation:Silicone Rubber
Sheath:Fiber Glass
Color:White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Application: Inner wires of electric appliances,lighting fixtures, industrial machines,electric heating products and etc..
Certificate:40016706

Conductor			Insulation/Sheath				Resistence at 20ºC Ω/km
Nominal Section (mm²)	Conductor Structure No./mm	Diameter (mm)	Nom Thickness (mm)	Fiberglass Thickness (mm)	Outer Diameter (mm)
					Nominal O.D.	Max O.D.
0.5	20/0.18	0.94	0.60	0.15	2.4	2.6	40.100
0.75	42/0.15	1.13	0.60	0.15	2.6	2.8	26.700
1	32/0.20	1.31	0.60	0.15	2.8	3.0	20.000
1.5	30/0.25	1.58	0.70	0.18	3.3	3.6	13.700
2.5	49/0.25	2.06	0.80	0.18	4.0	4.3	8.210
4	56/0.30	2.60	0.80	0.20	4.6	5.0	5.090
6	84/0.30	3.60	0.80	0.20	5.6	6.0	3.390
10	84/0.40	4.60	1.00	0.25	7.1	7.7	1.950
16	126/0.40	5.50	1.00	0.25	8.0	8.6	1.240
25	196/0.40	7.30	1.20	0.30	10.3	11.1	0.795
35	276/0.40	8.50	1.20	0.30	11.5	12.4	0.565
50	396/0.40	10.30	1.40	0.35	13.8	14.9	0.393
70	360/0.50	12.40	1.40	0.35	15.9	17.2	0.277
95	475/0.50	14.50	1.60	0.40	18.5	20.0	0.210

Application Area
Manufacturing Shop
Certifications We have the certifications of UL, VDE, CCC, ISO9001, IATF 16949.

Packaging & Shipping

Company Profile Jiangyin Yuanda Electrical Material Co., Ltd. is a professional manufacturer, and our main products include
A. Series of automotive cables which can meet various standards , like ISO, SAE, JASO, JB/T, VW, LV, GMW and etc. ; B. RF, RG series of coaxial cables with abroad application in cellphone , laptop , router , 5G/6G , war industry , smart car and etc. for communication ;C. UL, VDE, CCC verified , PVC/cross-linked polyolefin/silicone rubber/fluoroplastic insulated series of household electric appliance wires ;D. Heat resistant silicone rubber sleeves with (or without) fiberglass braid , widely used in household appliances, motors, vehicles and etc. ;E. Special cables applicable to urban orbitals, photovoltaic systems, wind power generation, space navigation and etc..
mmai
n products includeain products includemain products includemain products include

Our Advantages Yuanda have abundant technical strength, advanced equipment ,functional testing facilities and good quality-ensuring systems . We have acquired the certificates of IATF 16949,ISO 9001,ISO 14001,OHSAS 18001 for automotive cables and communication cables . Series of silicone rubber, fluorine plastic, crosslinked polyolefin electronic wires and sleeves are certified by UL,VDE and CCC.Especially our aluminum conductor cable , new energy high-voltage shield cable , and some coaxial cables used in automotive , enjoy high popularity in automotive industry. With high-qualify products, reasonable price and splendid after-sales service, our products supporting customers are exported to the world.

---
