Welcome to visit

Plastic Machine / Plastic Extruder / Best Sale UPVC / HDPE / PPR Pipe Making Machine / Production Line

US$22,000.00-68,000.00 1 set (MOQ)

Basic Info.

Model NO.
65/132
Type
Pipe Extruder
Plastic Processed
PVC
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Certification
ISO9001 CE
Machine Color
Blue or According to Customer Requirement
Pipe Size
50-160 mm
Machine Output
250 Kg/H
Installation Power
120 Kw
Suitable Material
PVC
Transport Package
Film
Specification
25*1.5*3.5m
Trademark
CHANGYUE
Origin
Shandong, China
HS Code
84772090

Packaging & Delivery

Package Size
2500.00cm * 150.00cm * 320.00cm
Package Gross Weight
6500.000kg

Product Description

PVC pipe production line / PVC tube making machine
youtube video:
https://youtu.be/dch0bVpEQ7Y?list=PLdPUk-wZcyzGRVb4HNr_t_4615P94ejB4
Description of PVC pipe makign machine

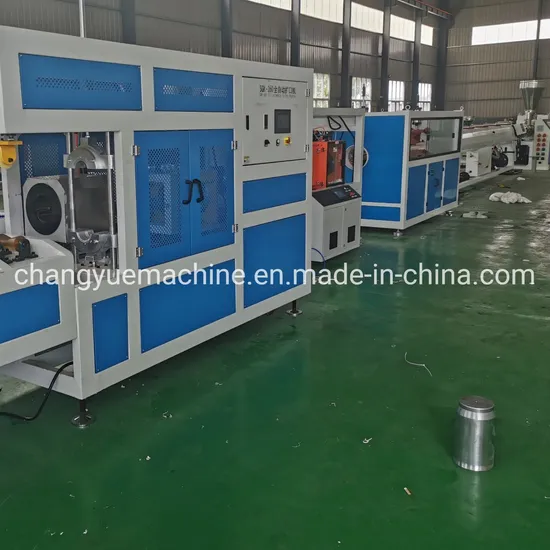

PVC pipe extruder machine/UPVC pipe making machine is mainly used in the manufacturer of the UPVC and PVC pipes with various tube diameters and wall thickness such as agricultural and constructional plumbing, water supply and drain etc. This set is composed of conical twin-screw extruder,vacuum calibration tank, hual-off machine,cutter, stacker etc.
Our machine can produce the PVC pipe with diameter from 16-630mm.
Main parameter of PVC pipe making machine
Model pipe range(mm) extruders max.speed(m/min) total power(kw) max.output(kg/h) line length(m)
PVC-50*2 16-50 SJSZ51/105 6 60 150 20
PVC-63 16-63 SJSZ45/90 10 45 120 20
PVC-110 50-110 SJSZ51/105 6 60 150 24
PVC-160 63-160 SJSZ65/132 5 100 300 24
PVC-250 110-250 SJSZ80/156 3.5 120 400 28
PVC-315 160-315 SJSZ80/156 3 160 400 36
PVC-450 250-450 SJSZ92/188 1.5 200 700 36
PVC-630 315-630 SJSZ92/188 0.9 230 700 36

Machine details
Our customer&exhibition
Packing
